PRODUCT |  MD-20/HD-20

  •  Product name : MD-20/HD-20
  •  Category : Transilluminator » Wealtec
  •  Catalog : MD-20HD-20_support.pdf

Description

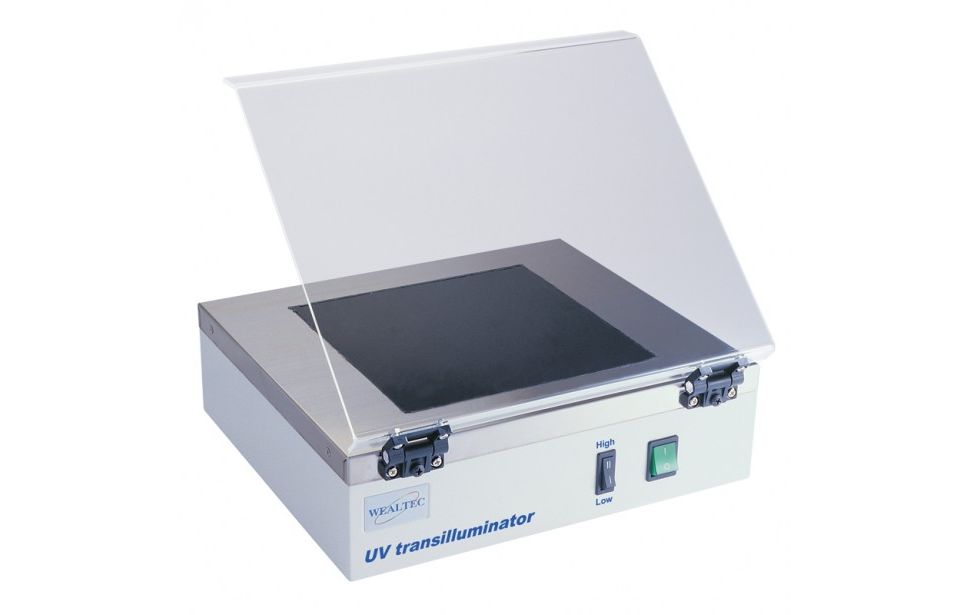

UV transilluminator (MD-20/HD-20)

Compact benchtop UV Transilluminator, MD-20 / HD-20 comprises with 6 X 8W, 302nm / 365nm UV tube, 200 x 200mm filter size, low background filter, UV radiation blocking cover, high / low intensity switch, and reflection aluminum plate. Popularly for visualization of agarose/acrylamide gel stained by EtBr, SYBR® Green, SYBR® Gold, SYPRO® Ruby, SYPRO® Orange. In addition, it can be applied in forensic science and polymer curing. Dual wavelength (302/365nm) UV-transilluminator is available.



Features :

- Low cost excitation source for gel documentation

- High / Low intensity selectable switch

- UV radiation blocking cover

- Long life time UV tubes



Specification :

- Filter size (mm) : 200 x 200

- Filter type : Low background filter

- Wavelength (nm) : 302 / 365

- Light source : 8 Watt x 6 tubes

- Switch : High / Low intensity switchable

- Cover frame material : 316 Stainless steel

- Protection cover : Yes

- Power : 120 / 230 / 100V, 50 / 60Hz

- Physical dimensions (mm) : 320 x 280 x 90 (W x D x H)

- Weight (kg) : 7.4

- Certification : CE

The spec is subject to change without prior notice.



With a view models as follows :

- MD-20 UV transilluminator, Cat. No. : 1142001, 120V/ 50-60 Hz, 302 nm, 20 x 20cm filter size

- MD-20 UV transilluminator, Cat. No. : 1142002, 230V/ 50-60 Hz, 302 nm, 20 x 20cm filter size

- MD-20 UV transilluminator, Cat. No. : 1142005, 100V/ 50-60 Hz, 302 nm, 20 x 20cm filter size

- HD-20 UV transilluminator, Cat. No. : 1142007, 120V/ 50-60 Hz, 365 nm, 20 x 20cm filter size

- HD-20 UV transilluminator, Cat. No. : 1142008, 230V/ 50-60 Hz, 365 nm, 20 x 20cm filter size

- HD-20 UV transilluminator, Cat. No. : 1142011, 100V/ 50-60 Hz, 365 nm, 20 x 20cm filter size
