PRODUCT |  MD-25/HD-25

  •  Product name : MD-25/HD-25
  •  Category : Transilluminator » Wealtec
  •  Catalog : MD-25HD-25_support.pdf

Description

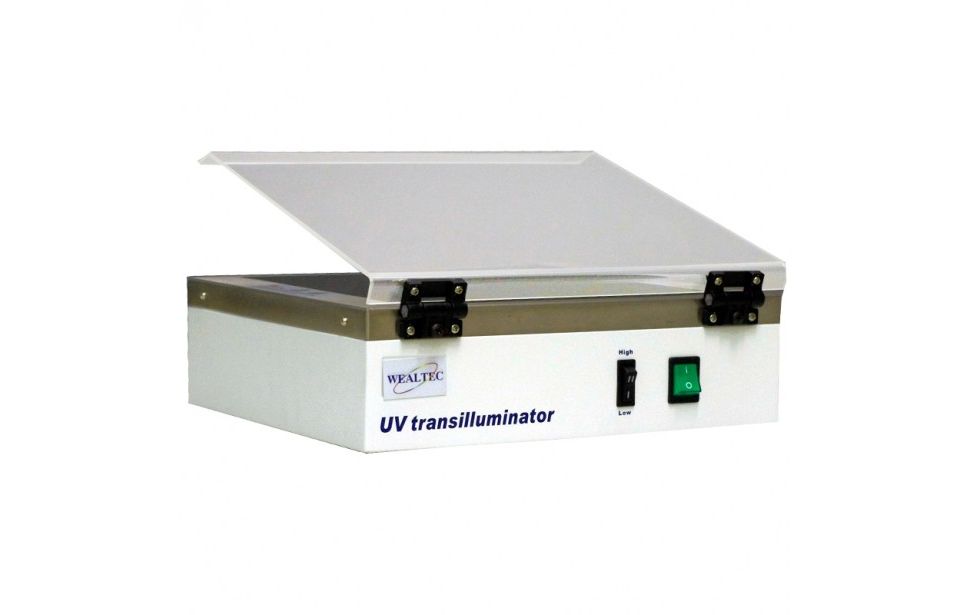

UV transilluminator (MD-25/HD-25)

Compact benchtop UV Transilluminator, MD-25 / HD-25 comprises with 6 X 8W, 302nm / 365nm UV tube, 250 x 250mm filter size, low background filter, UV radiation blocking cover, high / low intensity switch, and reflection aluminum plate. Popularly for visualization of agarose/acrylamide gel stained by EtBr, SYBR® Green, SYBR® Gold, SYPRO® Ruby, SYPRO® Orange. In addition, it can be applied in forensic science and polymer curing. Dual wavelength (302/365nm) UV-transilluminator is available.



Features :

- Low cost excitation source for gel documentation

- High / Low intensity selectable switch

- UV radiation blocking cover

- Long life time UV tubes



Specification :

- Filter size (mm) : 250 x 250

- Filter type : Low background filter

- Wavelength (nm) : 302 / 365

- Light source : 8 Watt x 6 tubes

- Switch : High / Low intensity switchable

- Cover frame material : 316 Stainless steel

- Protection cover : Yes

- Power : 120 / 230 / 100V, 50 / 60Hz

- Physical dimensions (mm) : 320 x 280 x 90 (W x D x H)

- Weight (kg) : 7.4

- Certification : CE

The spec is subject to change without prior notice.



With a view models as follows :

- MD-25 UV transilluminator, Cat. No. : 1142003, 120V/ 50-60 Hz, 302 nm, 25 x 25cm filter size

- MD-25 UV transilluminator, Cat. No. : 1142004, 230V/ 50-60 Hz, 302 nm, 25 x 25cm filter size

- MD-25 UV transilluminator, Cat. No. : 1142006, 100V/ 50-60 Hz, 302 nm, 25 x 25cm filter size

- HD-25 UV transilluminator, Cat. No. : 1142009, 120V/ 50-60 Hz, 365 nm, 25 x 25cm filter size

- HD-25 UV transilluminator, Cat. No. : 1142010, 230V/ 50-60 Hz, 365 nm, 25 x 25cm filter size

- HD-25 UV transilluminator, Cat. No. : 1142012, 100V/ 50-60 Hz, 365 nm, 25 x 25cm filter size
