PRODUCT |  200/200S

  •  Product name : 200/200S
  •  Category : Spectrophotometer » Wealtec
  •  Catalog : 200200S_support.pdf

Description

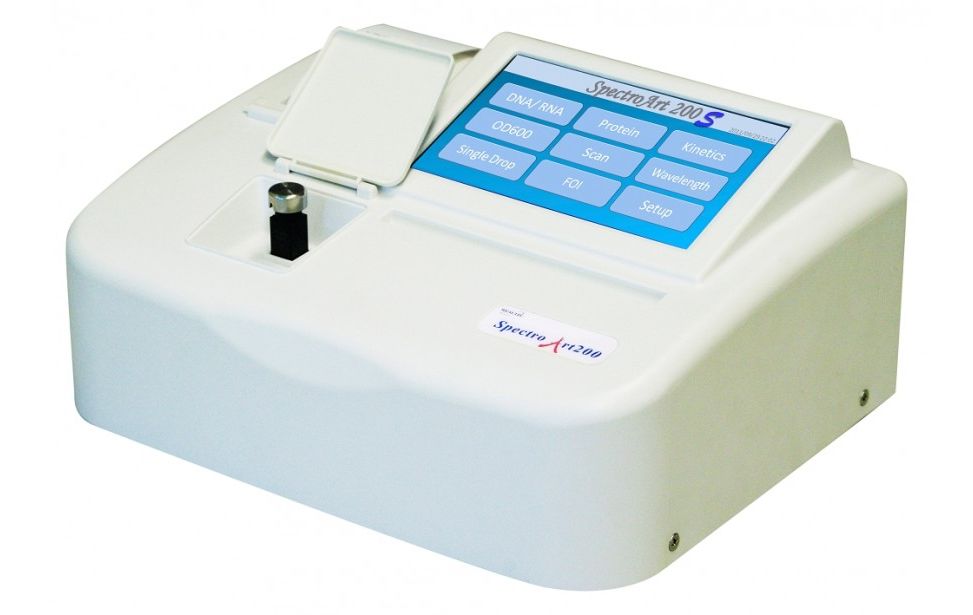

UV/Vis Spectrophotometer 200/200S

SpectroArt 200/200S Spectrophotometer equipped with high intensity xenon flash lamp provides fast and stable spectral analysis. Functions include protein and nucleic acid quantification, bacterial growth, kinetic assay, specific wavelength and full spectrum scanning, FOI function, and Single Drop, applicable with all kinds of bioscience experiments. Each analysis category with auto conversion function provides operator to change and readout data in desirable Abs, T%, 260 / 280 ratio, or concentration. All data and spectrums can be printed out through built-in thermal printer. The wavelength accuracy of compact optical module was calibrated by Holmium oxide for longest stability. The single drop analysis mode is included in SpectroArt 200S for 0.7-5 μl ultra-micro sample volume, DNA concentration ranging from 25 to 4,250ng/μl can be detected by single drop mode. Moreover, labeling density of fluorescent labeled nucleotide probe can be determined through FOI function. Standard cuvette, semi-micro, micro, disposable cuvettes can be also adaptable for general applications. Optional computer control software is available.



Features :

- Specific bio application functionality, DNA / RNA, Protein, OD 600, Kinetics, Wavelength, Scan, FOI

- Direct dialogue operation interface no additional training necessary

- Pre-set single drop analysis from 0.7 - 5μl sample volume

- High intensity Xenon flash lamp covers 200 to 800nm

- Optical resolution less than 1nm

- Real-time result storage

- PC software available



Specification :

- Light source : Flash Xenon Lamp

- Detector : 2048-elements linear silicon CCD array

- Display : 7" Touch screen TFT LCD

- Wavelength range (nm) : 200 – 800

- Wavelength accuracy (nm) : ± 1.5 from 200 – 800

- Abs/Photometric accuracy (nm) : ± 0.01@1 & 0.5 AU

- Abs/Photometric repeatability (nm) : ± 0.01@1 AU; ± 0.004@0.5 AU

- Stray light (nm) : < 0.05% @ 600 ; < 0.1% @ 435

- Photometric noise : 0.003 @ 0AU, 550nm

- Spectral bandwidth (nm) : < 2

- Absorbance range (AU) : 0 – 3.5

- Data collection speed (ms) : 10 to 200 ms (Default: 50 ms)

- Light path (mm) : 10

- Z-dimension (mm) : 8.5

- Multiple wavelength : 10 Max.

- Sample test repetition : 10 Max.

- Analytic data storage : 999 Max.

- Kinetic analysis range (sec) : 60 – 6000

- Communication port : RS 232 x 1, USB 2.0 x 1, Ethernet x 1

- Single beam : YES

- Applicable cuvette types : Standard / Semi-micro / Micro-volume

- DNA / RNA / Protein / Wavelength : Standard

- Kinetics / OD 600 / Scan / FOI : Standard

- PC software : Option

- Printer : Built-in

- dsDNA recommended working range (μg/ml) : 10-100

- Physical dimensions (mm) : 320 x 255 x 150 (W x D x H)

- Weight (kg) : 4.5

- Power Input : 100 - 240V AC, 50 - 60Hz Max. 50W

- Certification : CE

The spec is subject to change without prior notice.



With a view models as follows :

- SpectroArt 200, Cat. No. : 1210000, Bio-spectrophotometer system, Pre-set single drop analysis : option, 100 - 240V, 50 - 60Hz

- SpectroArt 200SCat. No. : 1210021, Bio-spectrophotometer system complete with 1211005 for single drop analysis, 100 - 240V, 50 - 60Hz
