PRODUCT |  Heating Circulators

  •  Product name : Heating Circulators
  •  Category : Refrigerated - Heating Circulators » Julabo
  •  Catalog :

Description

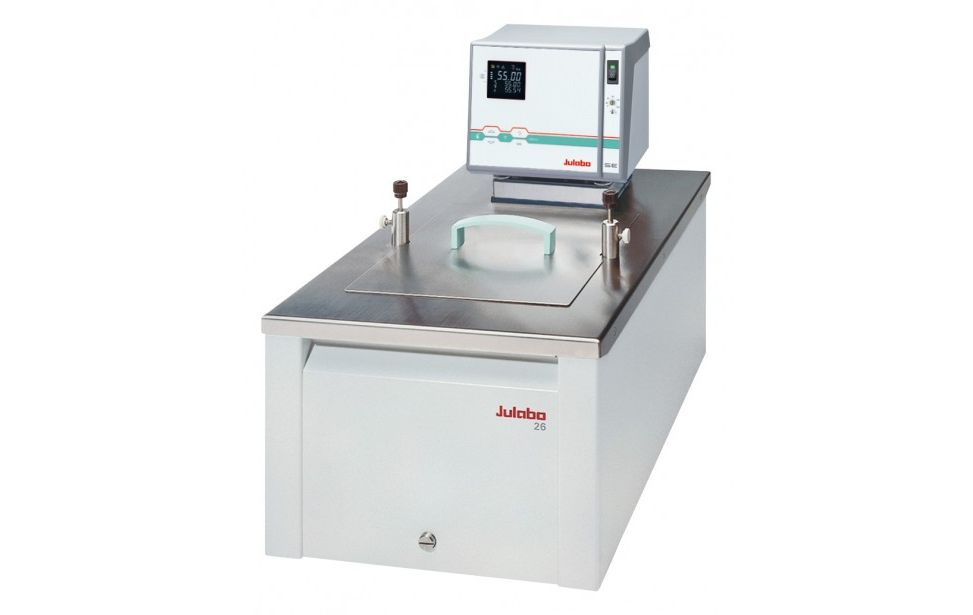

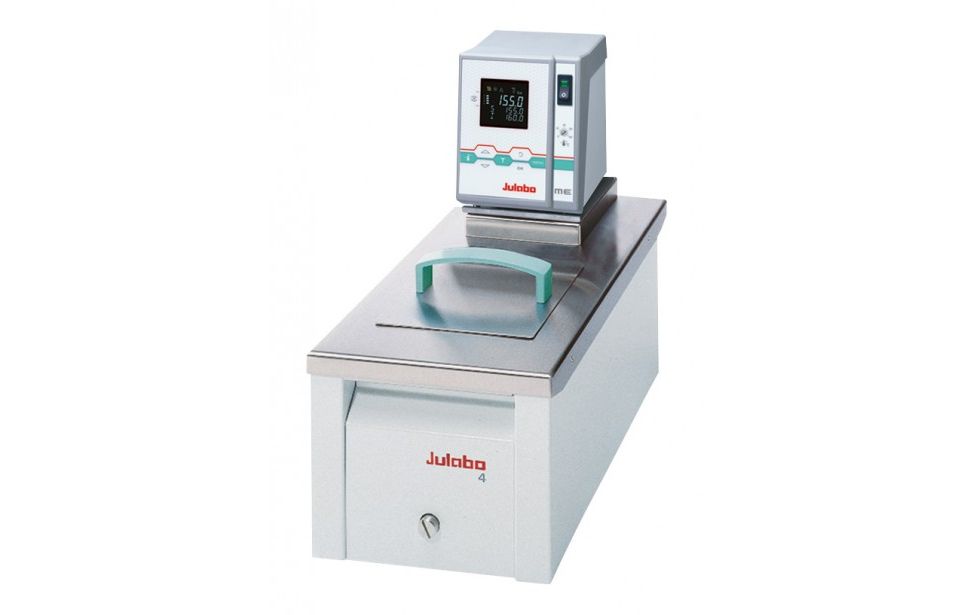

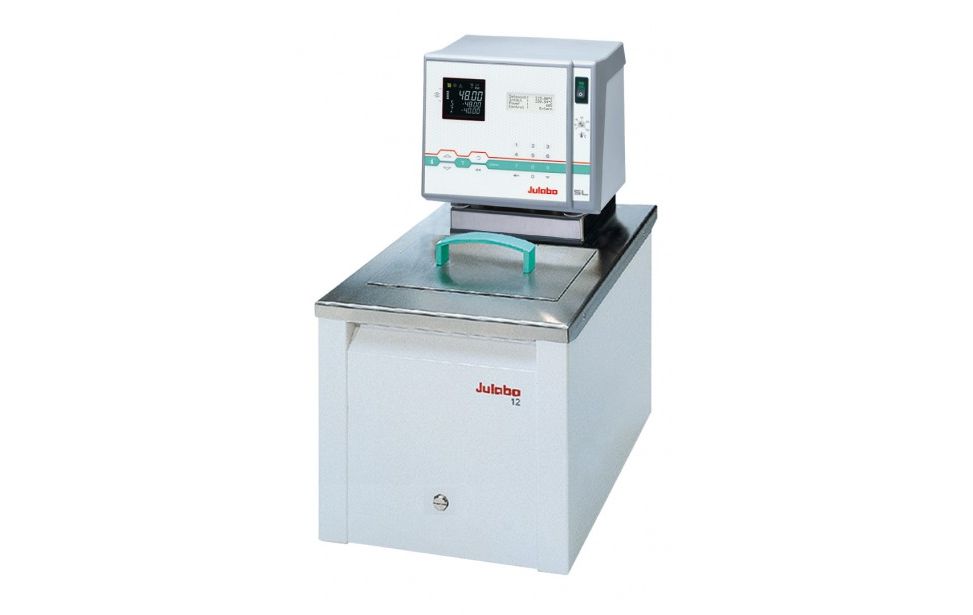

Heating Circulators

for external and internal temperature applications up to +300 °C with stainless steel bath tanks and pump connections



JULABO circulators with stainless steel bath tanks are suitable for both internal and external temperature control. They have greater power for larger and open systems, making them ideal for external temperature control. Smaller objects may be inserted directly into the circulator's bath at the same time. Models are available with a variety of bath sizes and other functional characteristics. Accessories like Pt100 sensors, heat transfer liquid, tubing, and adapters are available to facilitate connection to external systems. An integrated cooling coil enables temperature control below or near the ambient temperature.



Product overview



CORIO :

Order No.

Model

Working temperature
range (°C)

Temperature stability
(°C)

Heating capacity (kW)

Pump capacity flow rate
(l/min)

Pump pressure (bar)

9012504

CORIO CD-BC4

+20 … +150

±0.03

2

15

0.35

9012506

CORIO CD-BC6

+20 … +150

±0.03

2

15

0.35

9012512

CORIO CD-BC12

+20 … +150

±0.03

2

15

0.35

9012526

CORIO CD-BC26

+20 … +150

±0.03

2

15

0.35



TopTech :

Order No.

Model

Working temperature
range (°C)

Temperature stability
(°C)

Heating capacity (kW)

Pump capacity flow rate
(l/min)

Pump pressure (bar)

9153504

MA-4

+20 … +200

±0.01

2

11-16

0.23-0.45

9153506

MA-6

+20 … +200

±0.01

2

11-16

0.23-0.45

9153512

MA-12

+20 … +200

±0.01

2

11-16

0.23-0.45

9153526

MA-26

+20 … +200

±0.01

2

11-16

0.23-0.45

9162504

ME-4

+20 … +200

±0.01

2

11-16

0.23-0.45

9162506

ME-6

+20 … +200

±0.01

2

11-16

0.23-0.45

9162512

ME-12

+20 … +200

±0.01

2

11-16

0.23-0.45

9162526

ME-26

+20 … +200

±0.01

2

11-16

0.23-0.45



HighTech :

Order No.

Model

Working temperature
range (°C)

Temperature stability
(°C)

Heating capacity (kW)

Pump capacity flow rate
(l/min)

Pump pressure (bar)

9212504

HE-4

+20 … +250

±0.01

2

22-26

0.4-0.7

9312504

HL-4

+20 … +250

±0.01

2

22-26

0.4-0.7

9252506

SE-6

+20 … +300

±0.01

3

22-26

0.4-0.7

9252512

SE-12

+20 … +300

±0.01

3

22-26

0.4-0.7

9252526

SE-26

+20 … +300

±0.01

3

22-26

0.4-0.7

9352506

SL-6

+20 … +300

±0.01

3

22-26

0.4-0.7

9352512

SL-12

+20 … +300

±0.01

3

22-26

0.4-0.7

9352526

SL-26

+20 … +300

±0.01

3

22-26

0.4-0.7
