PRODUCT |  Genesys 30

  •  Product name : Genesys 30
  •  Category : Spectrophotometer » Thermo Scientific
  •  Catalog : Genesys_30_support.pdf

Description

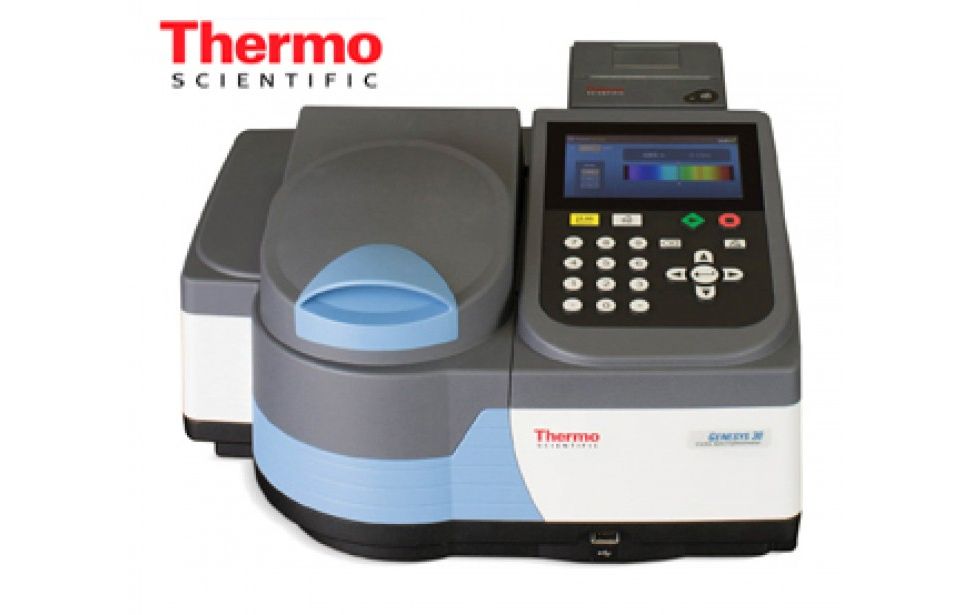

GENESYS™ 30 Visible Spectrophotometer, Cat. No. 840-277400

Get high precision and functionality in a simple yet sophisticated visible spectrophotometer. The Thermo Scientific™ GENESYS™ 30 Visible Spectrophotometer performs both basic and complex analyses for educational or industrial use. Its intuitive design allows students and teachers to focus on scientific data and concepts rather than on learning how to use the instrument. In the lab, technicians of all levels working in routine QA/QC applications can easily obtain credible results to confirm quality or inform next steps. Results can be reported quickly as digital or printed data.



Product Features :

- Entirely new industrial design for better usability

- High definition 5-inch color screen with rubberized push-button keypad for easy navigation

- Single cell measurement with removable, washable sample compartment liner

- Cell holders for standard cell types including test-tubes

- New onboard software UI; Thermo Scientific™ VISIONlite PC software is optional

- Data any way you want it

- USB data export in a text format that’s easy to read and process

- Excellent snap-on thermal printer

- Three-year warranty and skilled technical support



Meets curriculum topics for :

- Single wavelength

- Scanning

- Beer’s Law

- Colorimetry/colorimetric analysis

- Quantitative analysis



Lab associate benefits :

- Higher data confidence with 6-point quant plus concentration mode

- Multiple local language choices



Specifications :

Baseline Flatness

<0.003A
325nm – 1000nm smoothed

Compartments

Accessible from top, front or side
Able to accommodate cells up to 100mm pathlength
Available accessory for test-tubes up to 25mm diameter and 150mm height
Removable, washable sample compartment liner with magnetic placement and hold-down

Connections

USB-A on front face supports flash memory devices for method and data storage
USB-B on side supports connection to a Windows™ computer running optional remote control software.

Description

GENESYS 30 Visible Spectrophotometer

Detector Type

Silicon Photodiode

Dimensions (L x W x H)

35.5cm x 38.5cm x 19.5cm

Display

5 in. diagonal, 32 bit color display, 800 x 480 pixels

Drift

<0.002A/Hr
At 500nm after 2hr warmup. Typical <0.004A/hr after 1hr warmup

Electrical Requirements

External AC to DC converter.Voltage and Hz selected automatically, 100-250 volts, 50-60Hz

Keypad

Tactile rubber 23 keys with numeric keypad

Lamp

1000 Hrs typical service life

Languages

English, Spanish, German, French, Italian, Portuguese, Russian,Chinese, Japanese, Korean, Thai, Arabic

Noise

≤0.001A at 0A
≤0.001A at 1A
≤0.002A at 2A
RMS at 500nm. 60 consecutive measurements

Optical Design

Single beam

Photometric Accuracy Instrument

±0.002A (0 - 0.3A)
0.5% of ABS reading (0.301A - 2.5A)

Photometric Display

-3A to +3A, 0 to 200 000 %T, 0 to 9 999 999 C

Photometric Range

-3A to +3A

Photometric Repeatability

± 0.002 A
Measured at 1.0 A @546nm

Printer

Thermal printer accessory with 80mm width paper

Spectral Bandwidth

5 nm

Stray Light

<0.1%T at 340nm and 400nm
Measured using glass cutoff filters or NaNO2 at 340nm

Wavelength Accuracy

± 2nm

Wavelength Data Interval

1nm

Wavelength Range

325nm – 1100nm

Wavelength Repeatability

< ±1nm

Wavelength Scan Speed

Automatic – up to 1200nm/min

Weight (Metric)

7.5kg
