PRODUCT |  SV-100

  •  Product name : SV-100
  •  Category : Viscometer / Rheometer » AND
  •  Catalog : SV-100_support.pdf

Description

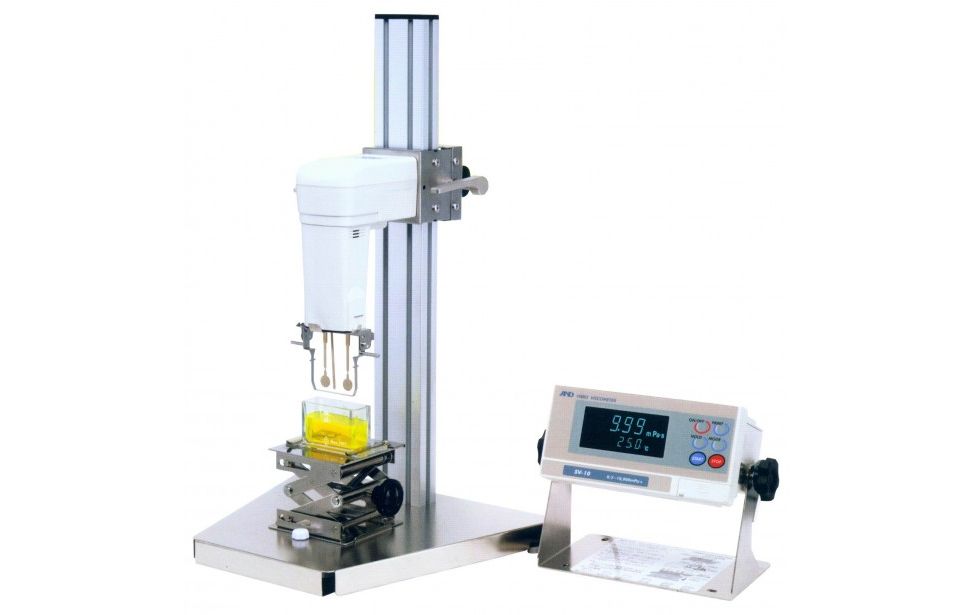

SV-100

Sine-wave Vibro Viscometer



Specifications :

Measurement Method

Sine-wave Vibro Viscometer using Tuning Fork Vibration Method

Vibration Frequency

30Hz

Viscosity Measurement Unit

Pa·s , P

Viscosity Measurement Range

1 – 100Pa·s (1,000 – 100,000mPa·s)

Accuracy

1% of Repeatability (S.D. , 20 – 30°C , No condensation )

Operating Temperature

10 – 40°C ( 50 – 104°F )

Minimum Sample Amount

Standard Sample Cup (35ml-45ml), Optional Small Sample Cup (10ml), Optional Glass Sample Cup (13ml)

Temperature Measurement

0 – 160°C /0.1°C ( 32 – 320°F/0.1°F )

Display

Vacuum Fluorescent Display ( VFD )

Interface

RS-232C

Power Supply

AC Adaptor

Power Consumption

Approx. 14VA

Physical Dimensions

Main Unit : 332 (W) x 314 (D) x 536 (H) mm / Approx. 5.0 kg

Display Unit : 238 (W) x 132 (D) x 170 (H) mm / Approx. 1.3 kg

Connection Cable Length

1.5m ( Between the Main Unit and the Display Unit )

Standard Accessories

Manual , AC Adaptor , CD-ROM ( WinCT-Viscosity ) Sample Cups , RS-232C Cable ( 25 pins – 9 pins )
