PRODUCT | ECO
- Product name : ECO
- Category : Calorimeter » DDS Calorimeters
- Catalog : ECO_support.pdf
Description
ECO Oxygen Bomb Calorimeter System

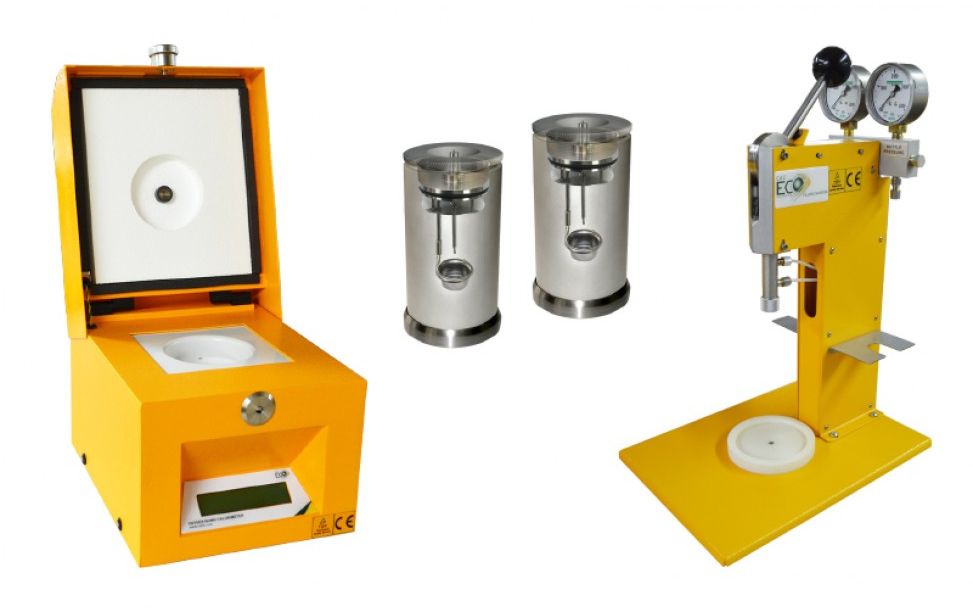

The ECO Bomb Calorimeter is the most affordable of the DDS Scientific product range. The ECO is the most compact and cost-effective of all the models on offer. The ECO can handle 1 determination in an hour. It has been designed with the academic user in mind. It is ideal for low volume sample requirements typically found in Educational Institutions. The ECO Bomb calorimeter System is packaged complete with : Calorimeter, Filling Station, and Two Vessels.
ECO FEATURES
|
Feature |
Description |
|
Low Volume Application |
Low Volume Application : 1 Sample per hour with 1 vessel |
|
No Water Required |
No water required during sample determination |
|
Cost-Effective |
The CAL2K ECO calorimeter is inexpensive |
|
No Operator Attention Required |
No operator attention required during analysis |
|
LCD Prompts |
LCD display to prompt faults and progress |
|
Intelligent Vessel |
Uses the intelligent CAL2K Vessel |
|
Compact |
Small and compact design |
|
PC Keyboard |
Uses a standard PC Keyboard |
|
Uses Windows Operating Software |
Results retrieval connected to PC, using Windows based Operating Software |
|
+1000 Results |
Stores 1024 results and other variables |
|
Self-Incrementing Sample ID |
Sample Identification is settable and self-incrementing |
|
Vessel Temp. for Spreadsheet Analysis |
Vessel temperature can "stream" to a PC for user spreadsheet analysis |
|
Factory Setup for Standard Operation |
Factory setup for standard operation with optional value changes |
|
Optional Spiking |
Can use spiking for hard to combust samples |
|
Mass Entry Through Balance |
Connects directly to balance for mass entry |
|
Built-In Diagnostic |
Built-in diagnostic, ideal for first hand diagnostic |
|
Works in BTU/lb, Calories/grams or MJ/Kg |
|
|
5000 determination cycles before vessel inspection |
|
|
External power supply for 9V, 100mA is supplied |
|
