PRODUCT |  MilliGascounter

  •  Product name : MilliGascounter
  •  Category : Gas Meter / Gas Purging » Ritter
  •  Catalog : MilliGascounter_support.pdf

Description

MilliGascounter



Features :

Minimum flow rate 1 ml/h

Maximum flow rate 1 ltr/h

Resolution 3 ml

Accuracy ±3 % of reading across full flow rate range; in combination with »RIGAMO« software better than ±1 %

Use with inert and medium corrosive gases (biogas)

Materials: Plexiglas (PMMA), PVDF, PVC (red)

Digital counter with programmed calibration factor

Battery operated; battery life-time 3-4 years

Low-maintenance



The patented MilliGascounter is designed for the measurement of small amounts of gas with ultra-low flow rates. It is suitable for measuring all inert and slightly aggressive gases, in particular those encountered in biogas technology or in leak rate detection.

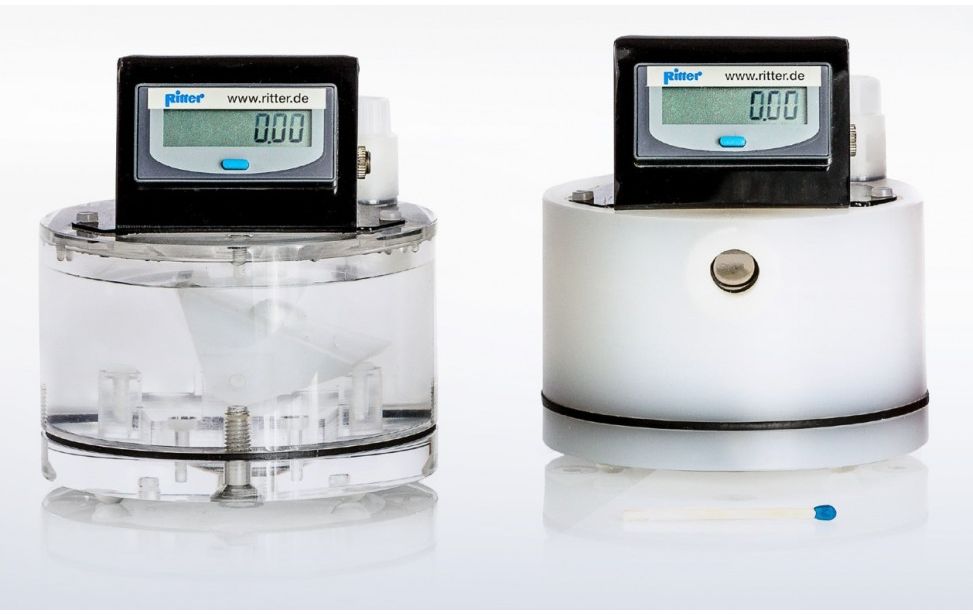

The MGC is available in the following casing/measurement cell materials :

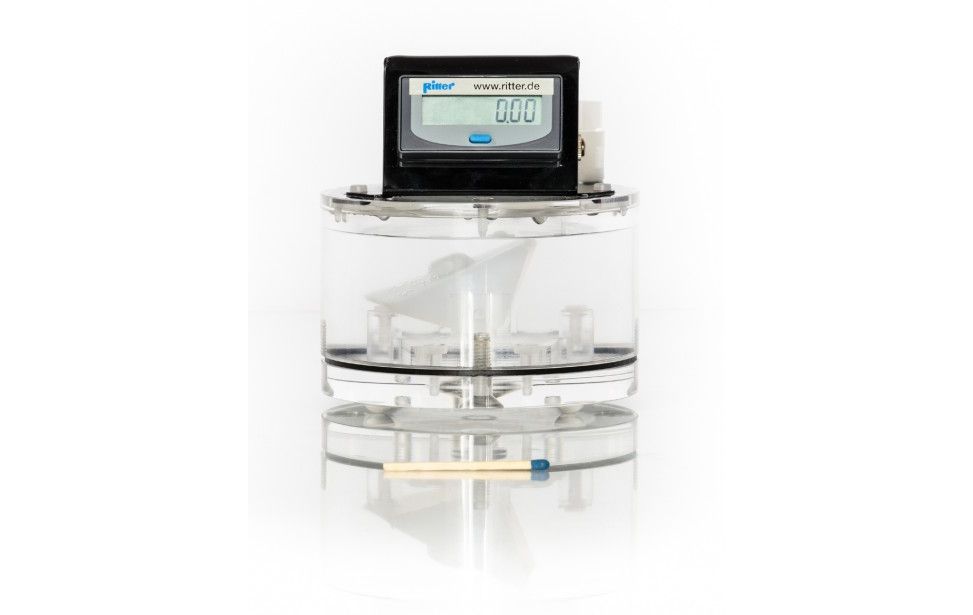

- PMMA/PVDF

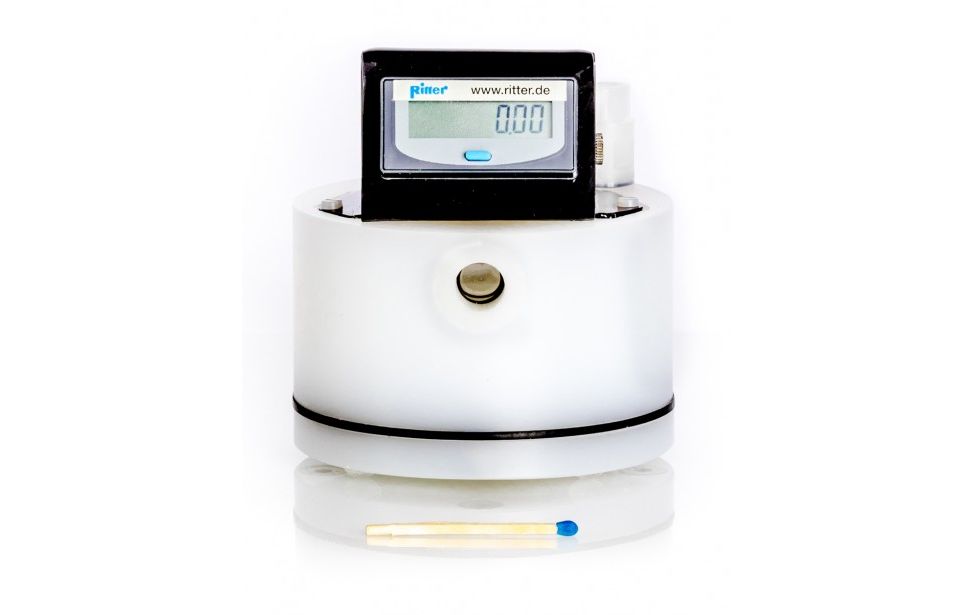

- PVDF/PVDF

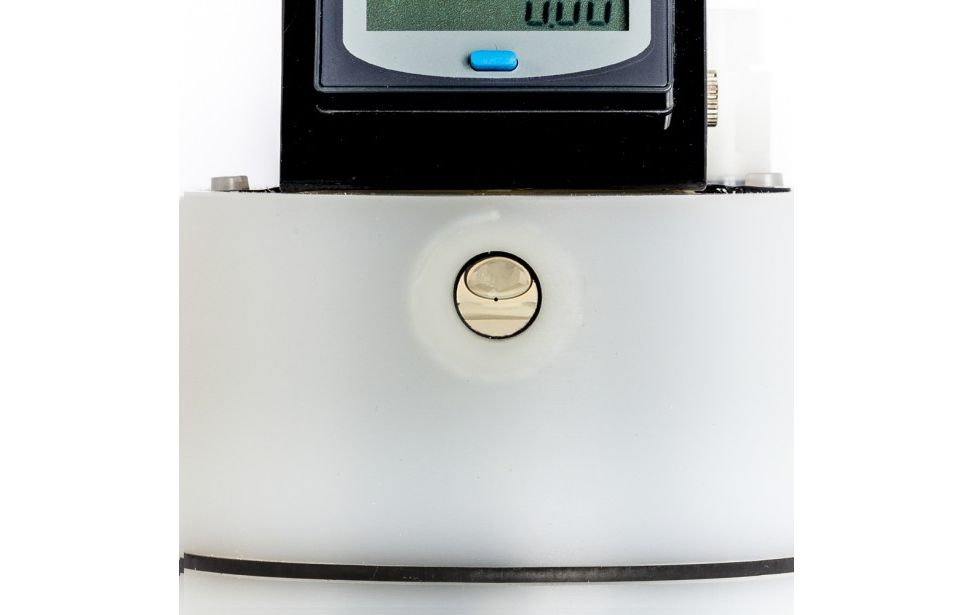

- PVC-red/PVC-red



Performance Data :

- Minimum flow Qmin : 1 ml

- Maximum flow Qmax : 1 ltr/h

- Measurement accuracy(1) : ±3 | ±1 %

- Measuring drum volume, approx(2) : 3 ml

- Min. measuring volume (resolution)(3) : 3 ml

- Packing liquid quantity, approx : 120 ml

- Diameter : 98 mm

- Height : 109 mm

- Maximum gas inlet pressure : 100 mbar

- Minimum gas inlet pressure : 8 mbar

- Gas inlet pressure at start of measurement(5) : 9 mbar

- Gas Temperature(4) : 10 to 60 °C (PMMA), 40 °C (PVC), 80 °C (PVDF)

- Minimum dial division(6) : 0.01 ml

- Maximum indication value(6) : 999,999.99 ml

- Connection gas in/outlet : Screw-type tube coupling

- Outside-Ø : 6 mm

- Inside-Ø : 4 mm



(1) Because of the physical measurement principle, the measurement error is dependent on the flow rate. The data acquisition software »RIGAMO« (accessory) provides an algorithm, which auto- matically recalculates the actual measurement data to the real values at the respective actual flow rate on the basis of the calibration curve. Thus, the remaining error can be reduced significantly or the flow rate range can be extended at the constant measurement error of ±3%. The remaining error is better than approx. ±1% across the full flow rate range.
(2) = Nominal value; exact value will be determined by individual calibration
(3) = Volume of measuring chamber
(4) For complete MGC unit applies: With temperatures > room temperature (e.g. if placed in heating furnace) a foam formation of the packing liquid was monitored in particular cases.
(5) The minimum gas inlet may be increased if the measurement starts with a high flow rate. In this case a higher pressure is needed until the micro capillary in the base plate is clear of packing liquid.
(6) Because of calibration factor with 2 decimals
