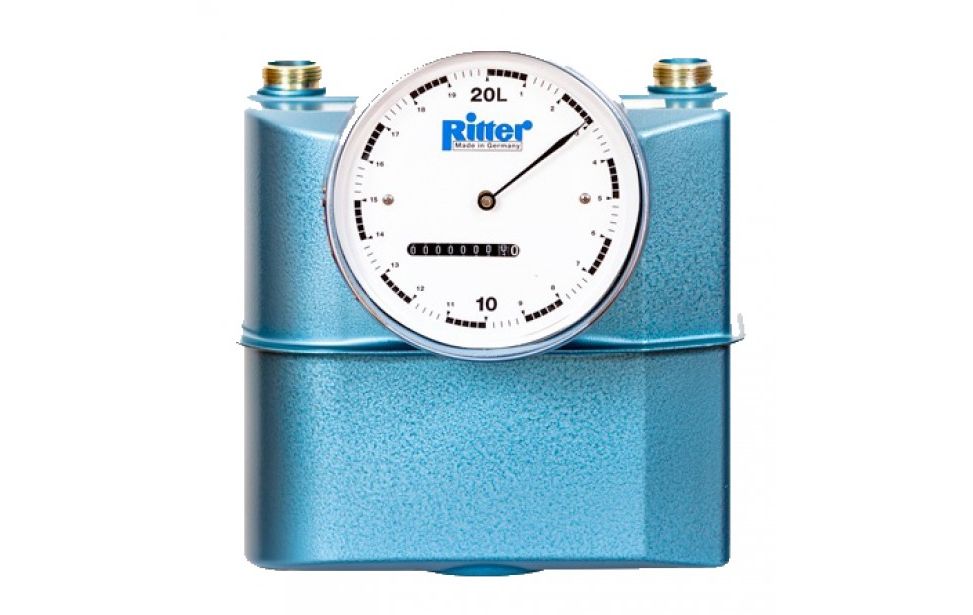

PRODUCT |  Bellows-type Gas Meters BG-Series

  •  Product name : Bellows-type Gas Meters BG-Series
  •  Category : Gas Meter / Gas Purging » Ritter
  •  Catalog : Bellows-type_Gas_Meters_BG-Series_support.pdf

Description

Bellows-type Gas Meters BG-Series (Dry-Type)



Application :

RITTER bellows-type gas meters are applicable for measuring the volume of flowing inert and dry gases and are particularly effective at high gas flows. Please note that gases containing aggressive components may reduce the life span of bellows-type gas meters, if the casing of the measuring unit (tinplate), the valve/control elements (polyamide) or the bellows (Perbunan) should be attacked.

The desired measurement range can be selected from among 6 magnitudes (types) extending together as a whole from 40 ltr/h to 160 m3/h at a gas temperature ranging from -20° to +50 °Celsius. The solidly soldered casing on the standard model is designed to withstand a maximum overpressure of 50 mbar (BG 40/100: 0.5 bar).



Equipment :

8-digit Totalizing Roller Counter

Gas Pipe Connection: Inch Thread

Large, One-needle Dial

Magnetic Coupling (between the measuring drum and counting mechanism)

Twin-Chamber Measuring Unit



Performance Data :

- Type BG 4, Flow Rate Minimum [ltr/h] : 40; Flow Rate Maximum [ltr/h] : 6,000; Flow Rate Standard [ltr/h]* : 3,000; Readout Indication Minimum [ltr]** : 0.1; Readout Indication Maximum [ltr]** : 99,999,999; Maximum gas inlet pressure [mbar] : 300

- Type BG 6, Flow Rate Minimum [ltr/h] : 60; Flow Rate Maximum [ltr/h] : 10,000; Flow Rate Standard [ltr/h]* : 5,000; Readout Indication Minimum [ltr]** : 0.2; Readout Indication Maximum [ltr]** : 99,999,999; Maximum gas inlet pressure [mbar] : 300

- Type BG 10, Flow Rate Minimum [ltr/h] : 100; Flow Rate Maximum [ltr/h] : 16,000; Flow Rate Standard [ltr/h]* : 10,000; Readout Indication Minimum [ltr]** : 0.5; Readout Indication Maximum [ltr]** : 999,999,990; Maximum gas inlet pressure [mbar] : 50

- Type BG 16, Flow Rate Minimum [ltr/h] : 160; Flow Rate Maximum [ltr/h] : 25,000; Flow Rate Standard [ltr/h]* : 15,000; Readout Indication Minimum [ltr]** : 0.4; Readout Indication Maximum [ltr]** : 999,999,990; Maximum gas inlet pressure [mbar] : 50

- Type BG 40, Flow Rate Minimum [ltr/h] : 400; Flow Rate Maximum [ltr/h] : 65,000; Flow Rate Standard [ltr/h]* : 39,000; Readout Indication Minimum [ltr]** : 0.4; Readout Indication Maximum [ltr]** : 999,999,990; Maximum gas inlet pressure [mbar] : 500

- Type BG 100, Flow Rate Minimum [ltr/h] : 1,000; Flow Rate Maximum [ltr/h] : 160,000; Flow Rate Standard [ltr/h]* : 95,000; Readout Indication Minimum [ltr]** : 0.4; Readout Indication Maximum [ltr]** : 999,999,990; Maximum gas inlet pressure [mbar] : 500



*At standard flow and 20°C (68°F) the measurement error (±0.2%) is determined
**Minimum dial division

Measuring accuracy: +/- 2% at standard flow and 20° Celsius (exact value is stated in individual Calibration Certificate)

Temperature range: -20 to +50° Celsius

No reverse flow direction possible!



Materials :

- Casing : BG 4 - BG 16: zinc-coated steel sheet (soldered) with outside also lacquered / BG 40 - BG 100: powder-coated steel sheet with outside also lacquered

- Measuring unit : tinplate

- Bellows (within measuring unit) : textile-reinforced Perbunan

- Rod linkage : BG 4: polyamide; all others: polyamide/brass

- Slide gate : Bakelite
