Description

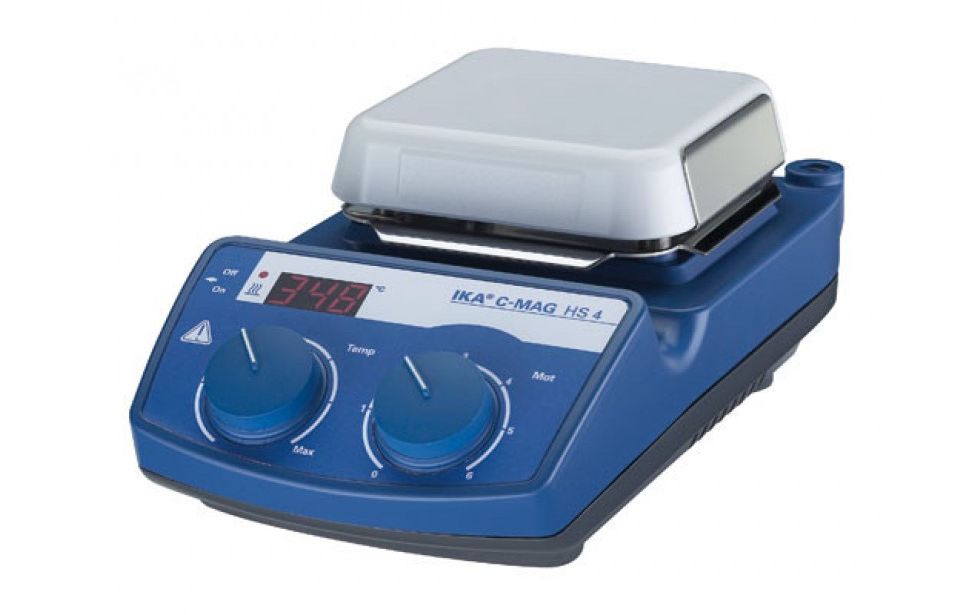

C-MAG HS 4

Magnetic stirrer with heating and ceramic heating plate which offers excellent chemical resistance.

- Powerful motor for stirring quantities of up to 5 l (H2O)

- Fixed safety circuit of 550 °C

- Hot Top indicator >> hot surface warning to prevent burns!

- Exact temperature setting via digital display (LED)

- Digital error code display

- Elevated control panel for protection against leaking liquids

Technical data :

- Heating temperature min. : 50°C

- Fixed safety circuit : 550°C

- Heating temperature max. : 500°C

- Motor rating output : 1.5W

- Width : 150mm

- Voltage : 230V

- Set temperature resolution : 10±K

- Stirring quantity max. per stirring position (H2O) : 5l

- Heating rate heating plate : 2.5K/min

- Power input : 270W

- Heat output : 250W

- Weight : 3kg

- Set-up plate dimensions : 100 x 100mm

- Height : 105mm

- Speed min. : 100rpm

- Set-up plate material : ceramic

- Direction of rotation : left

- Heat control : LED

- Speed display : scale

- Protection class according to DIN EN 60529 : IP 21

- Speed control : scale 0 - 6

- Permissible ambient temperature min. : 5°C

- Permissible ambient temperature max. : 40°C

- Depth : 260mm

- Motor rating input : 15W

- Speed max. : 1500rpm

- Frequency : 50/60Hz

- Permissible relative humidity : 80%

- Number of stirring positions : 1
