Description

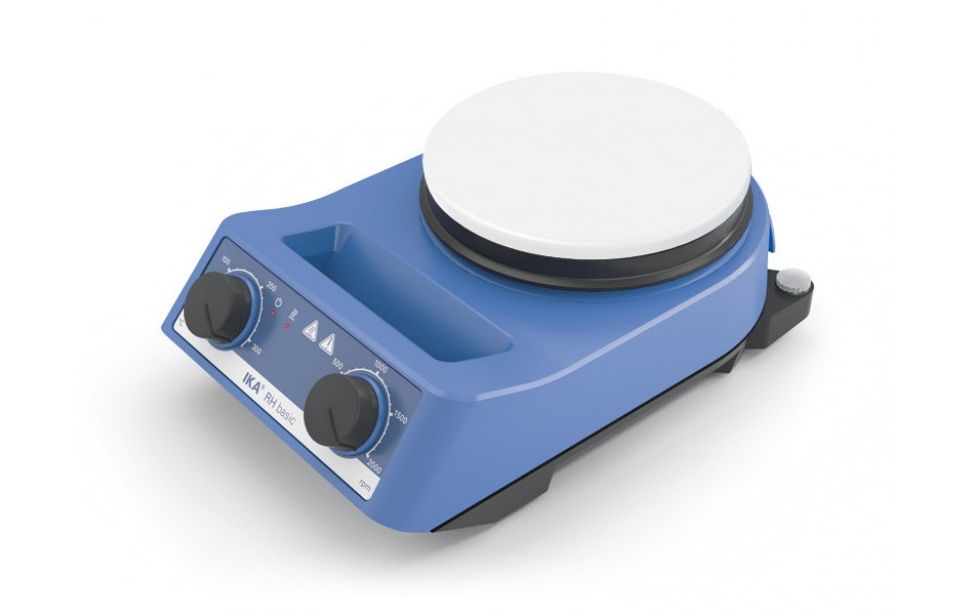

RH basic white

Magnetic Stirrers with Heating

Newly designed, economic magnetic stirrer with heating. Bushing according to DIN 12878 for connecting an electronic contact thermometer, such as the ETS-D5. Highly accurate temperature control is possible with sensor placed directly in the medium. High heat output of 600 watts and white ceramic heating plate ensures rapid heating and a very good chemical resistance. Adjustable safety temperature from 100 to 360 °C.

- Soft-start of the stirring motor

- Includes M 10 thread for a support rod

- Strong magnetic field and wide speed range for volumes up to 15 liters

Technical data :

- Heat output : 600W

- Adjustable safety circuit max. : 360°C

- Set-up plate dimensions : Ø 135mm

- Stirring quantity max. per stirring position (H2O) : 15l

- Heating temperature min. : 50°C

- Depth : 250mm

- Voltage : 230V

- Stirring bar length max. : 80mm

- Self-heating of the hotplate by max. stirring (RT:22°C/duration:1h) : 28+K

- Stirring bar length min. : 20mm

- Weight : 2.8kg

- Power input : 620W

- Heating rate medium : 6K/min

- Temperature setting range max. : 320°C

- Adjustable safety circuit min. : 100°C

- Temperature setting range min. : 0°C

- Width : 160mm

- Height : 100mm

- Heating temperature max. : 320°C

- Heat control : scale

- Speed display set-value : scale

- Temperature display set-value : scale

- Temperature unit : °C

- Direction of rotation : left

- Speed control : Turning knob

- Protection class according to DIN EN 60529 : IP 21

- Connection for ext. temperature sensor : ETS-D5

- Characteristics in the medium with temperature sensor : 1l M50 Oil at H1500

- Set-up plate material : technical enamel

- Frequency : 50/60Hz

- Speed max. : 2000rpm

- Speed min. : 100rpm

- Permissible relative humidity : 80%

- Permissible ambient temperature max. : 40°C

- Motor rating output : 2W

- Permissible ambient temperature min. : 5°C

- Number of stirring positions : 1
