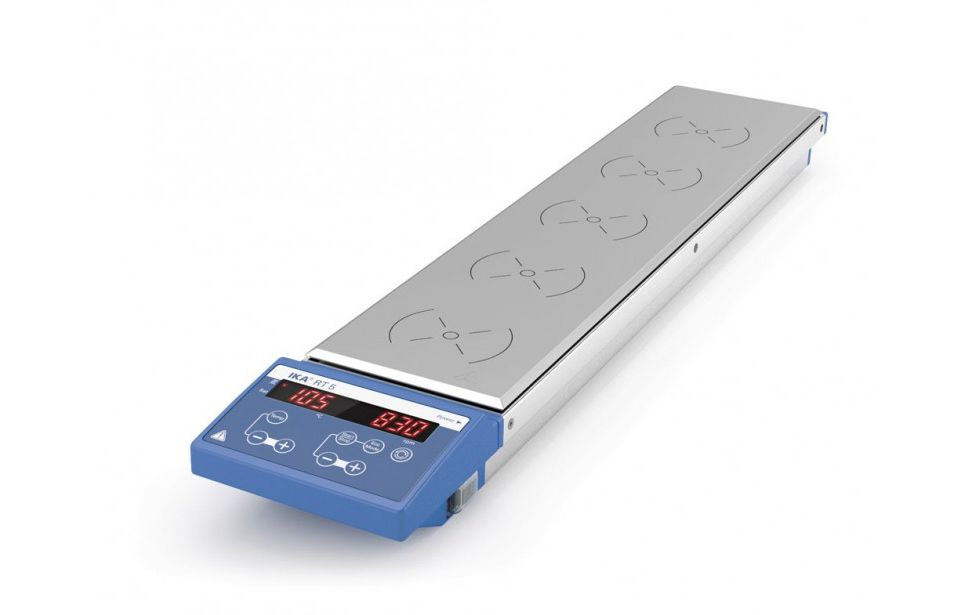

RT 5

Magnetic Stirrers with Heating

5-position digital magnetic hotplate stirrer, designed for synchronous heating and stirring. The magnetic coil technology provides noiseless and consistent stirring on all positions. The surface temperature is infinitely adjustable up to 120 °C, producing a maximum medium temperature of 70 °C (depending on the used vessel). Speed remains constant, even when load changes.

- Homogeneous temperature distribution across the heating plate

- Adjustable reverse operation

- Eco-mode for a low self-warming of the surface

- Wear free magnetic coils

- Error code display

- Easy operation with touch keypad

- Suitable for continuous operation

- Speed range: 0 - 1000 rpm

Technical data :

- Height : 60mm

- Heating rate heating plate : 3K/min

- Width : 120mm

- Stirring bar length min. : 25mm

- Speed deviation of individual stirring positions : 0%

- Stirring quantity max. per stirring position (H2O) : 0.4l

- Heating temperature max. : 120°C

- Adjustable safety circuit max. : 150°C

- Set-up plate dimensions : 110 x 495mm

- Power input : 200W

- Heat output : 175W

- Weight : 4kg

- Depth : 610mm

- Stirring position distance : 90mm

- Adjustable safety circuit min. : 50°C

- Speed min. : 0 rpm

- Stirring bar length max. : 30mm

- Number of stirring positions : 5

- Set-up plate material : Aluminium alloy

- Protection class according to DIN EN 60529 : IP 40

- Heat control : LED

- Permissible ambient temperature min. : 5°C

- Permissible ambient temperature max. :40°C

- Speed max. : 1000rpm

- Voltage : 230V

- Heating temperature min. : Room temp.°C

- Frequency : 50/60Hz

- Permissible relative humidity : 80%

- Speed control : 10 RPM Steps
