Description

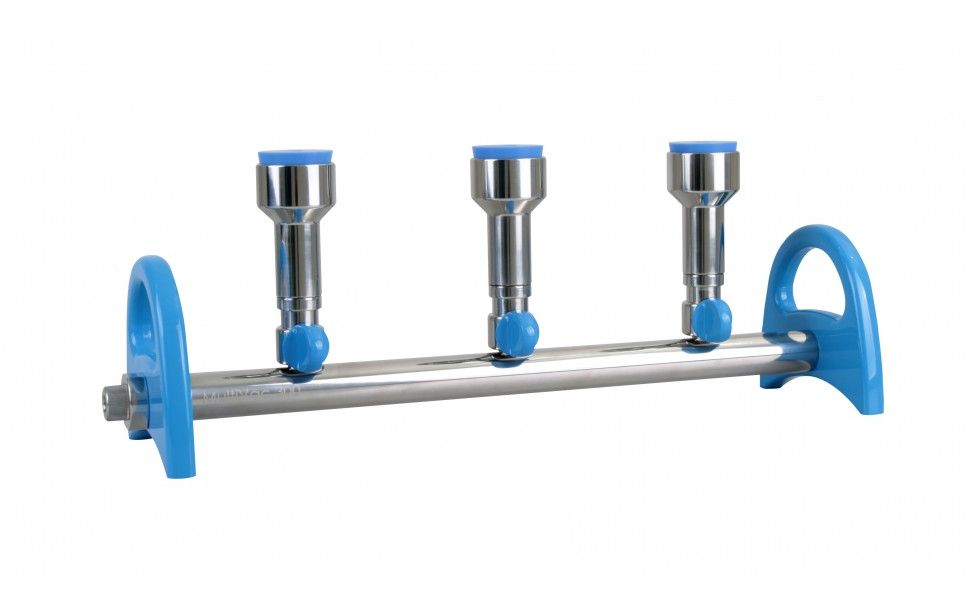

MultiVac 300-MS

Multi-Branch Manifold

Features :

- Quick-assembly and disassembly

Each component can be removed easily by hand for cleaning and autoclaving to prevent biofilms and eliminates sources of contamination.

- Convertible funnel adaptor

Convertible funnel adaptor design allows user to fit their desired funnel (reusable or disposable) easily.

- Innovative vent valve design

An adjustable vent valve integrated with the pipe can eliminate water hammer phenomenon and help drain out residual waste water.

- Quick-Fit hose barb

Detachable hose barb can be connected to either side of the manifold quickly towards the vacuum source.

- Individual control valve

Each branch permits individual control.

Applications :

- Filtration for microbiology test
- Chemical experiment
- General laboratory filtration

Specification :

- Number of branch : 3

- Filter diameter : Optional

- Funnel capacity : Optional

- Effective filtration area : Optional

- Hose barb : 5/16 inch (8mm)

- Dimension (LxWxH) : 48 x 13 x 16 cm

Material :

- Body : SUS316

- Control valve : SUS316

- Funnel support base : SUS316

- Handle : Aluminum

- Connector : SUS316

Ordering Information :

180300-01, MultiVac 300-MS, 3-Places Stainless Steel Manifold
