Description

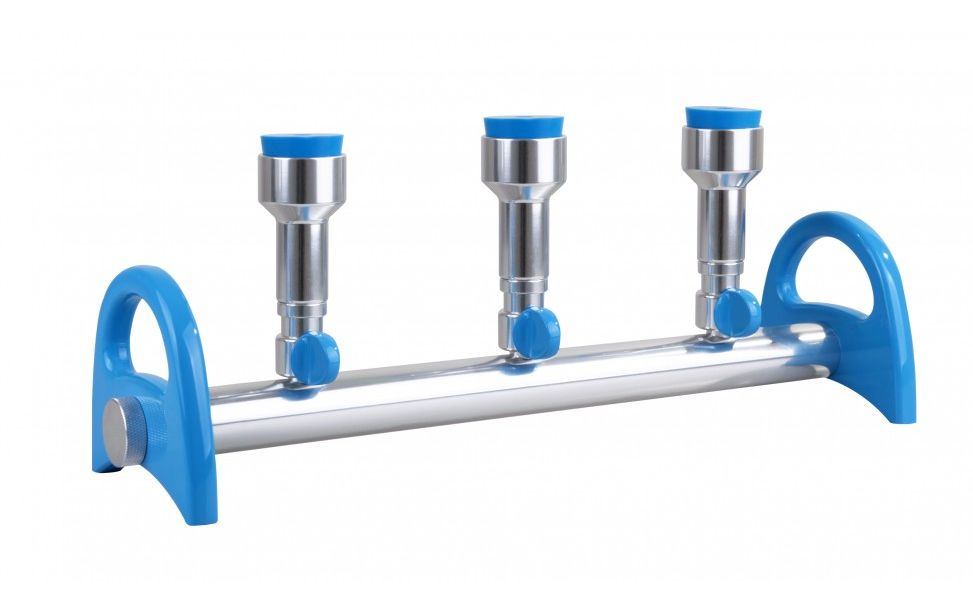

MultiVac 310-MS

Multi-Branch Manifold

Features :

- Light and handy aluminum design

All parts of MultiVac 310-MS is made of anodized aluminum, that make it light, cost-effective and autoclavable.

- Easy change connectors for the vacuum tubing

The tubing to the vacuum source can be connected to the other side of manifold.

- Individual control valve

Each branch permits individual control.

- Compatible with different sizes of filter holders

MultiVac 310-MS manifold include no.8 silicone stoppers which is available to fit various types of filter holders at option.

Applications :

- Filtration for suspended solid test
- Filtration for microbiology test
- General laboratory filtration

Specification :

- Number of branch : 3
- Filter diameter : Optional
- Funnel capacity : Optional
- Effective filtration area : Optional
- Hose barb : 5/16 inch (8mm)
- Dimension (LxWxH) : 47x13x16 cm

Material :

- Body : Aluminum
- Control valve : Aluminum
- Handle : Aluminum
- Hose barb : Aluminum

Ordering Information :

180310-01 , MultiVac 310-MS, 3-Places Aluminum Manifold
