MultiVac 310-MS-T

Filtration System

Features :

- Special design for large number samples

MultiVac 310-MS-T is an economical model for large sample filtration. This system includes vacuum pump, manifold, waste bottle and magnetic filter holders.

- Light and handy aluminum design

The manifold is made of anodized aluminum which is autoclavable, light and cost-effective.

- Magnetic filter holder is included

Magnetic filter holder allows one-handed operation, prevents possible twisting and tearing of the membrane.

- 4 liter PP waste bottle with drain

The large capacity of 4000ml waste bottle with drain offers convenience of collecting and draining waste solution.

Applications :

- Filtration for suspended solid test
- Filtration for microbiology test
- General laboratory filtration

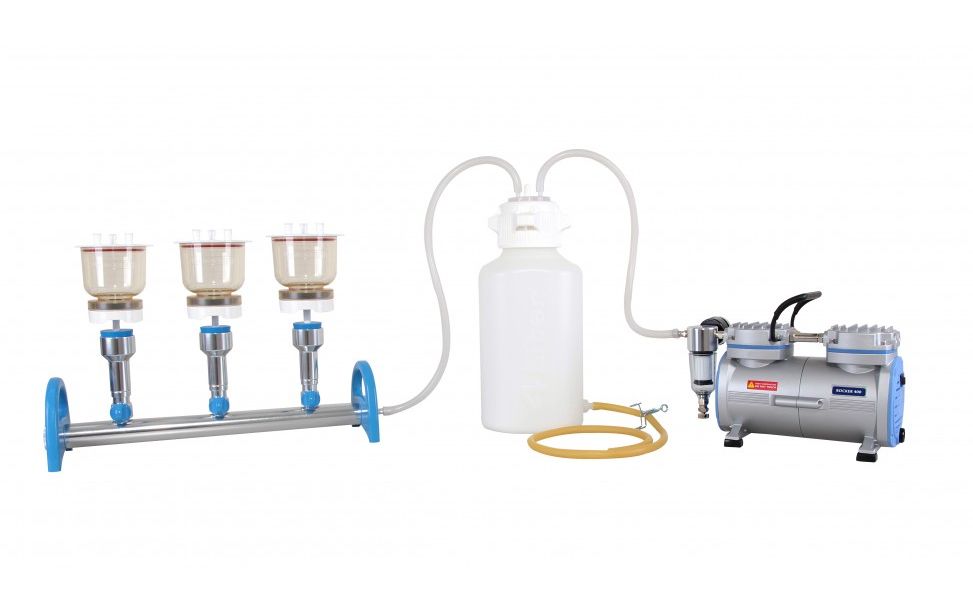

MultiVac 310-MS-T complete system includes :
- Rocker 400, Oil Free Vacuum Pump
- MultiVac 310-MS, 3-Places Aluminum Manifold
- 300ml Magnetic filter holder (3 pcs)
- 4000 ml PP Waste Bottle with drain Silicone Tube (2m)

Specification (110V, 60Hz) :
- Max. flow rate : 37 l/min
- Max. vacuum : -680 mmHg
- Waste bottle : 4000 ml, made of PP with drain
- Number of branch : 3
- Filter diameter : 47 mm
- Funnel capacity : 300 ml
- Effective filtration area : 13.1 cm²
- Hose barb : 5/16 inch (8 mm)

Specification (220V, 50Hz) :
- Max. flow rate : 341/min
- Max. vacuum : -680 mmHg
- Waste bottle : 4000 ml, made of PP with drain
- Number of branch : 3
- Filter diameter : 47 mm
- Funnel capacity : 300 ml
- Effective filtration area : 13.1 cm²
- Hose barb : 5/16 inch (8 mm)

Material :
- Body : Aluminum
- Control valve : Aluminum
- Filter funnel : PES (Polyether sulfone)
- Funnel support base : PES (Polyether sulfone)
- Connector : Aluminum

Ordering Information :

180311-11(22)-T, MultiVac 310-MS-T Vacuum Filtration System, complete set includes :
- Rocker 400, Oil Free Vacuum Pump
- MultiVac 310-MS, 3-Places Aluminum Manifold
- 300ml Magnetic filter holder (3 pcs)
- 4000 ml PP Waste Bottle with drain
- Silicone Tube (2m)
