Description

MultiVac 600-MB-T

Filtration System

Features :

- Special design for microbiology filtration

600-MB-T are designed for a large number of samples filtration on microbiology test. Each system includes vacuum pump, manifold, burner, waste bottle and filter.

- Innovative vent valve design

An adjustable vent valve integrated with the pipe can eliminate water hammer phenomenon and help drain out residual waste water.

- Quick-Fit hose barb

Detachable hose barb can be connected to either side of the manifold quickly towards the vacuum source.

- Individual control valve

Each branch permits individual control.

Applications :

- Filtration for microbiology test
- Chemical experiment
- General laboratory filtration

Specification (110V, 60Hz) :
- Max. flow rate : 37 l/min
- Max. vacuum : -680 mmHg
- Waste bottle : 4000 ml, made of PP with drain
- Number of branch : 6
- Filter diameter : 47mm / 50mm
- Funnel capacity : 100 ml
- Effective filtration area : 9.6 cm²
- Hose barb : 5/16 inch (8 mm)

Specification (220V, 50Hz) :
- Max. flow rate : 341/min
- Max. vacuum : -680 mmHg
- Waste bottle : 4000 ml, made of PP with drain
- Number of branch : 6
- Filter diameter : 47mm / 50mm
- Funnel capacity : 100 ml
- Effective filtration area : 9.6 cm²
- Hose barb : 5/16 inch (8 mm)

Material :
- Body : SUS316
- Control valve : SUS316
- Filter funnel : SUS316
- Funnel support base : SUS316
- Handle: Aluminum
- Connector : SUS316
- Vent valve : SUS316

Ordering Information :

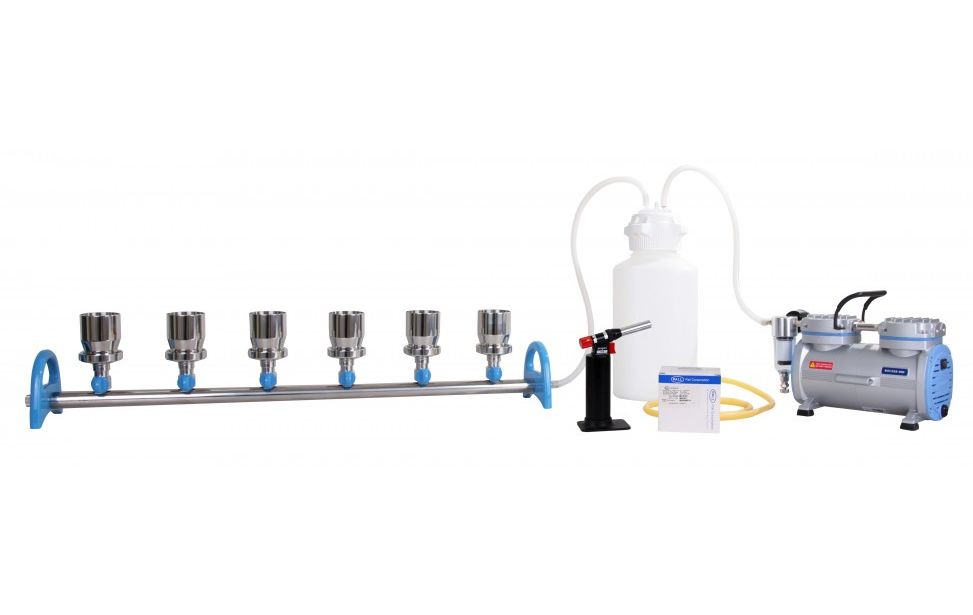

180600-11-T (22-T) MultiVac 600-MB-T, Vacuum Filtration System, complete set includes :
- Rocker 400, Oil Free Vacuum Pump
- MultiVac 600-MB, 6-Places Stainless Steel Manifold

- 100ml S.S. filter funnel, 6pcs
- 4000 ml PP Waste Bottle with drain
- Dragon 100, Torch Burner
- MCE Membrane, 47 mm, 0.45 μm, 200/PK
- Silicone Tube (2m)
