Description

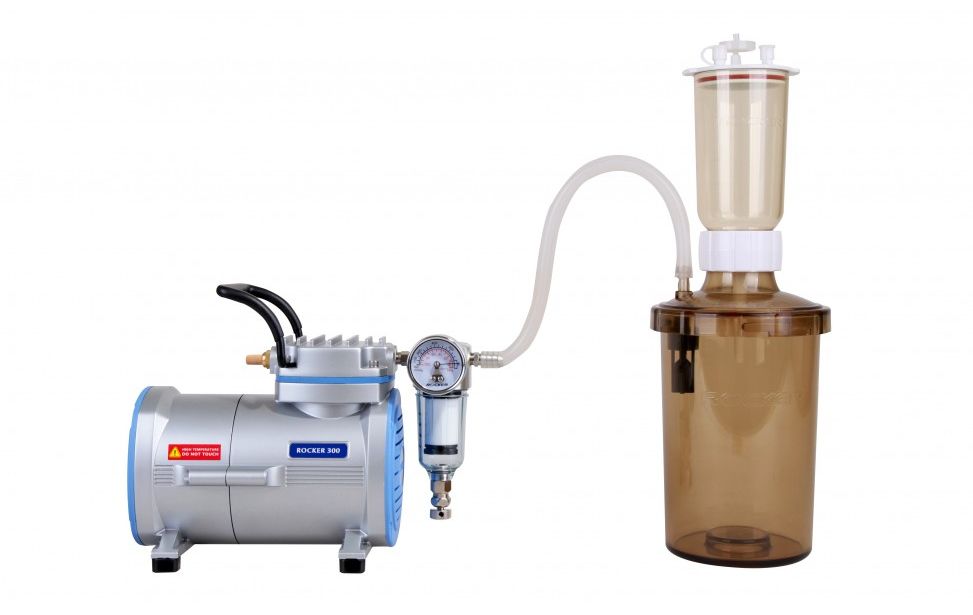

Rocker 300 - LF 30

Filtration System

Features :

- No air pollution, maintenance free

Rocker series pumps are piston-driven, no need for lubricant, regular oil changes and maintenance with no oil pollution.

- The patented spin-lock design

The filter holder can be connected with waste bottle by patented spin-lock connection giving a fast and stable installation without clamp.

- Overflow protection

Waste bottle comes with a built-in overflow proteciton to keep the filtrate from overflowing when waste bottle is full.

International safety certification :
- CE certification
- CSA certification (Rocker 300)

Applications :

Rocker 300 - LF 30 is ideal for general filtration in laboratory

Complete system includes :
- Rocker 300 oil free vacuum pump
- LF 30 filtration set
- Silicone tube (1m)

Specification (110V, 60Hz) :
- Max. flow rate : 23 l/min
- Max. vacuum : -680 mmHg
- Capacity : 300 ml / 1200 ml
- Filter diameter : 47 mm / 50 mm
- Effective filtration area : 12.5 cm²
- Hose barb : 5/16 inch (8 mm)

Specification (220V, 50Hz) :
- Max. flow rate : 20 l/min
- Max. vacuum : -680 mmHg
- Capacity : 300 ml / 1200 ml
- Filter diameter : 47 mm / 50 mm
- Effective filtration area : 12.5 cm²
- Hose barb : 5/16 inch (8 mm)

Material :
- Filter funnel : PES
- Waste bottle : PC
- Funnel support base : PP
- Funnel lid : PP
- Overflow protection : PP

Ordering Information :

167305-11(22), Rocker 300 - LF 30, Vacuum Filtration System, complete set includes :
- Rocker 300, Oil Free Vacuum Pump
- LF 30, Filtration Set
- Silicone Tube (1m)

197010-30
- LF 30 47mm PES Filtration set
