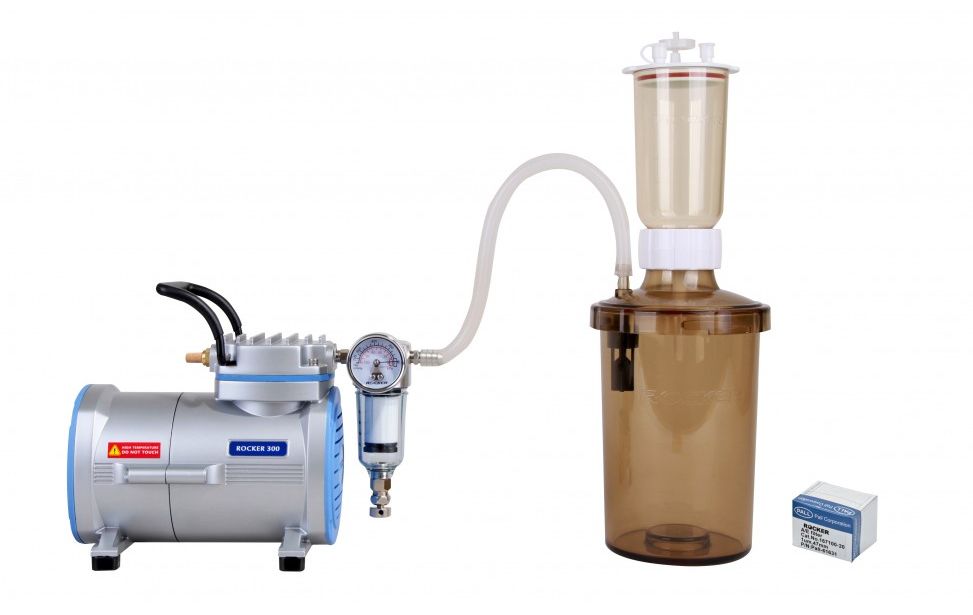

Rocker 300 - LF 30 - SS
Filtration System
Features :
- No air pollution, maintenance free
Rocker 300 - LF 30 - SS utilizes piston pump requiring no lubricant and regular maintenance.
- The patented spin-lock design
The filter holder can be connected with waste bottle by patented spin-lock connection giving a fast and stable installation without clamp.
- Overflow protection
Waste bottle comes with a built-in overflow proteciton to keep the filtrate from overflowing when waste bottle is full.
- Ideal package
The complete set of Rocker 300 - LF 30 - SS offers a total solution for suspended solid test.
International safety certification :
- CE certification
- CSA certification (Rocker 300)
Applications :
- Suspended Solid Test
Complete system includes :
- Rocker 300 oil free vacuum pump
- LF 30 filtration set
- Glass Fiber Discs (47mm, 1μm)
- Silicone tube (1m)
Specification (110V, 60Hz) :
- Max. flow rate : 23 l/min
- Max. vacuum : -680 mmHg
- Capacity : 300 ml / 1200 ml
- Filter diameter : 47 mm / 50 mm
- Effective filtration area : 12.5 cm²
- Hose barb : 5/16 inch (8 mm)
Specification (220V, 50Hz) :
- Max. flow rate : 20 l/min
- Max. vacuum : -680 mmHg
- Capacity : 300 ml / 1200 ml
- Filter diameter : 47 mm / 50 mm
- Effective filtration area : 12.5 cm²
- Hose barb :m 5/16 inch (8 mm)
Material :
- Filter funnel : PES
- Waste bottle : PC
- Funnel support base : PP
- Funnel lid : PP
- Overflow protection : PP
- Filter : Glass Fiber ( 1μm, ø47mm )
Ordering Information :
167307-11(22), Rocker 300 - LF 30 - SS, Vacuum Filtration System, complete set includes :
- Rocker 300, Oil Free Vacuum Pump
- LF 30, Filtration Set
- Glass Fiber Filter, 47mm, 1μm , 100/PK
- Silicone Tube (1m)
197010-30
- LF 30 47mm PES Filtration set
