Description

Rocker 300 - LF 31

Filtration System

Features :

- No air pollution, maintenance free

Rocker series pumps are piston-driven, no need for lubricant, regular oil changes and maintenance with no oil pollution.

- The patented spin-lock design

The filter holder can be connected with waste bottle by patented spin-lock connection giving a fast and stable installation without clamp.

- Overflow protection

The waste bottle of Rocker 300 - LF 31 comes with a built-in overflow protection to keep the filtrate from overflowing when waste bottle is full.

International safety certification

- CE certification
- CSA certification (Rocker 300)

Applications :
- Rocker 300 - LF 31 is ideal for general filtration in laboratory

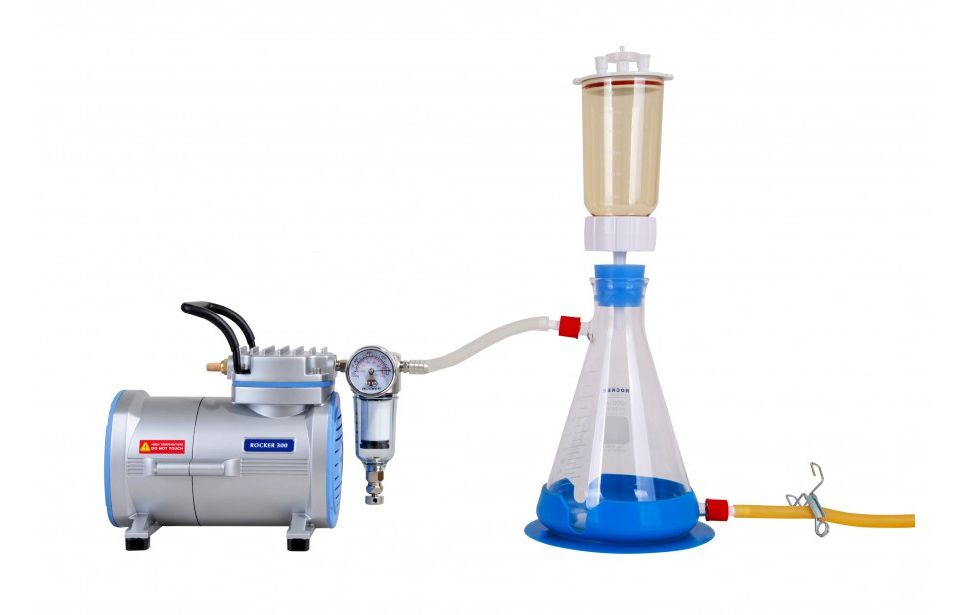

Complete system includes :
- Rocker 300 Oil Free Vacuum Pump
- LF 31 Filtration Set
- Silicone Tube (1m)

Specification (110V, 60Hz) :
- Max. flow rate : 23 l/min
- Max. vacuum : -680 mmHg
- Capacity : 300 ml / 1000 ml
- Filter diameter : 47 mm / 50 mm
- Effective filtration area : 12.5 cm²
- Port thread : 5/16 inch (8 mm)

Specification (220V, 50Hz) :
- Max. flow rate : 20 l/min
- Max. vacuum : -680 mmHg
- Capacity : 100 ml / 1200 ml
- Filter diameter : 47 mm / 50 mm
- Effective filtration area : 12.5 cm²
- Port thread : 5/16 inch (8 mm)

Material :

- Filter funnel : PES
- Waste bottle : Borosilicate glass (with drain)
- Funnel support base : PP
- Funnel lid : PP

Ordering Information :

167308-11(22), Rocker 300 - LF 31, Vacuum Filtration System, complete set includes :
- Rocker 300, Oil Free Vacuum Pump
- LF 31, Filtration Set
- Silicone Tube (1m)

197010-31
- LF 31 47mm PES Filtration set
