Description

Rocker 300 - LF 32

Filtration System

Features :

- No air pollution, maintenance free

Rocker series pumps are piston-driven, no need for lubricant, regular oil changes and maintenance with no oil pollution.

- The patented spin-lock design

The filter holder can be connected with waste bottle by patented spin-lock connection giving a fast and stable installation without clamp.

- Overflow protection

The waste bottle of Rocker 300 - LF 32 comes with a built-in overflow proteciton to keep the filtrate from overflowing when waste bottle is full.

International safety certification :

- CE certification
- CSA certification (Rocker 300)

Applications :
- Rocker 300 - LF 32 is ideal for filtration requiring the sterilization such as microbiology test.

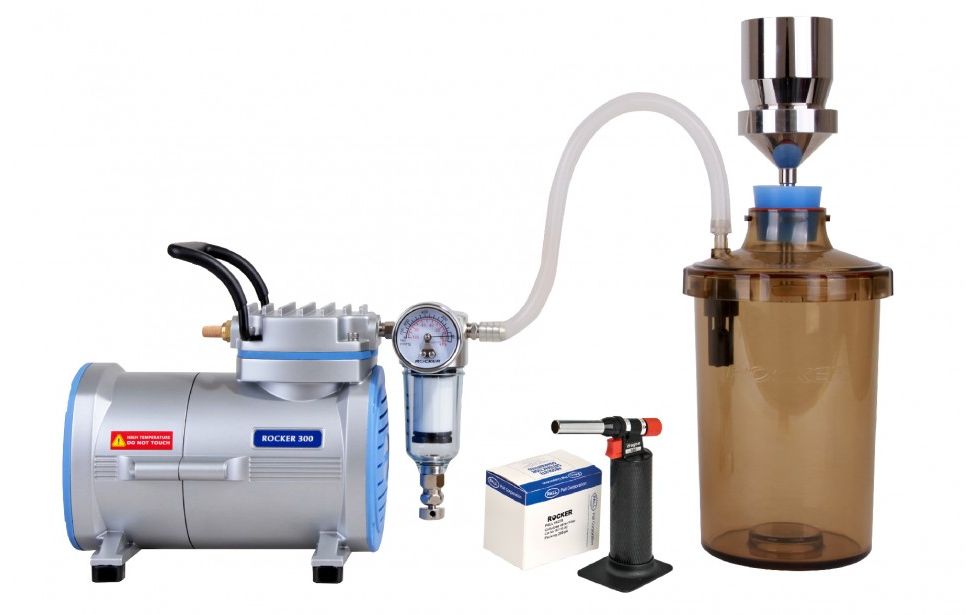

Complete system includes :
- Rocker 300 Oil Free Vacuum Pump
- LF 32 Filtration Set
- Dragon 100 Torch Burner
- MCE Membrane (47mm, 0.45μm)
- Silicone Tube (1m)

Specification (110V, 60Hz) :
- Max. flow rate : 23 l/min
- Max. vacuum : -680 mmHg
- Capacity : 100 ml / 1200 ml
- Filter diameter : 47 mm / 50 mm
- Effective filtration area : 9.6 cm²
- Port thread : 5/16 inch (8 mm)

Specification (220V, 50Hz) :
- Max. flow rate : 20 l/min
- Max. vacuum : -680 mmHg
- Capacity : 100 ml / 1200 ml
- Filter diameter : 47 mm / 50 mm
- Effective filtration area : 9.6 cm²
- Port thread : 5/16 inch (8 mm)

Material :
- Filter funnel : SUS316
- Waste bottle : PC
- Funnel support base : SUS316
- Overflow protection : PP
- Filter : MCE

Ordering Information :

167306-11(22), Rocker 300 - LF 32, Vacuum Filtration System, complete set includes :
- Rocker 300, Oil Free Vacuum Pump
- LF 32, Filtration Set
- Dragon 100, Torch Burner
- MCE Membrane, 47mm, 0.45μm, 200/PK
- Silicone Tube (1m)

197010-32
- LF 32 47mm PES Filtration set
