Description

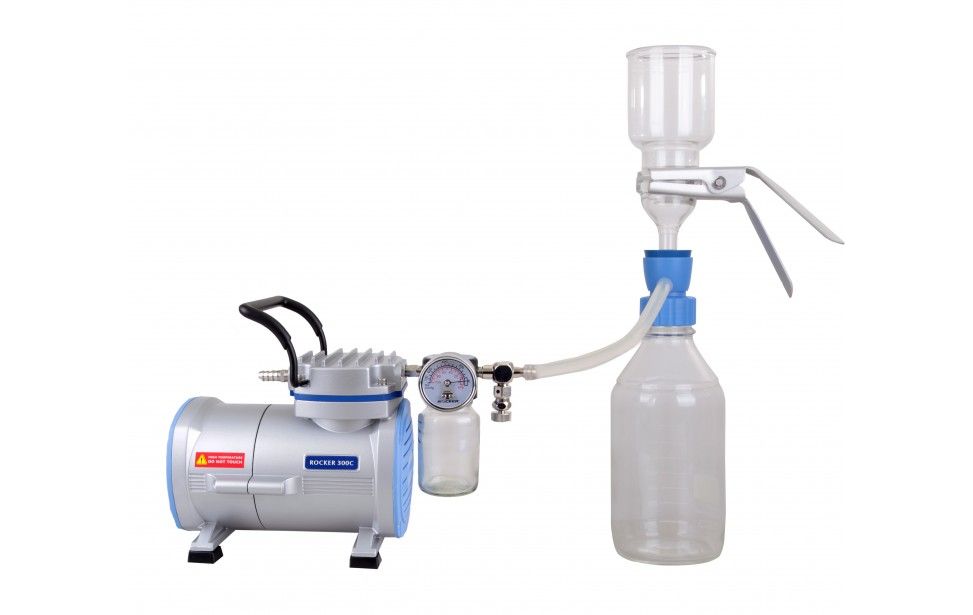

Rocker 300C - VF 12

Filtration System

Features :

- No air pollution, maintenance free

Rocker 300C pump is driven by diaphragm, no need of lubricant, regular oil changes and maintenance; with no oil pollution.

- Save Time

VF 12 can filtrate and store solution directly in GL45 storage bottle without the need of being transferred from the filtering flask.

- Suitable for all GL45 storage bottle

Unique filtration adaptor design can connect with GL45 storage bottle (1000ml, 2000ml, 5000ml…etc.)

Applications :
- Ideal for the purification of organic, corrosive liquid such as solvent (mobile phase) for HPLC analysis.

Complete Set Include :
- Rocker 300C, Vacuum Pump,AC110V, 60Hz (AC220V, 50Hz)
- VF 12, Filtration Set
- Silicone Tube (1m)

Rocker 300C Vacuum Pump Specification (110V, 60Hz) :
- Max. power : 65 W
- Max. current : 0.7 A
- Max. vacuum : -630 mmHg
- Max. flow rate : 23 l/min
- Motor rotation : 1750 RPM
- Horse power : 1/8 HP
- Noise level : 50.0 dB
- Hose barb : 5/16 inch (8 mm)
- Net weight : 4.1 kg
- Dimension (LxWxH) : 21.5x13.5x20.4 cm

Rocker 300C Vacuum Pump Specification (220V, 50Hz) :
- Max. power : 60 W
- Max. current : 0.3 A
- Max. vacuum : -630 mmHg
- Max. flow rate : 20 l/min
- Motor rotation : 1450 RPM
- Horse power : 1/8 HP
- Noise level : 50.0 dB
- Hose barb : 5/16 inch (8 mm)
- Net weight : 4.1 kg
- Dimension (LxWxH) : 21.5x13.5x20.4 cm

VF12 Glass Filtration Set, material :
- Filter funnel - Borosilicate glass
- Funnel support base - Borosilicate glass
- Membrane support - Sintered glass
- Clamp - Anodized aluminum
- Stopper - Silicone rubber (No.8)
- Filtration adaptor - PP
- Storage bottle - Borosilicate glass

Specification :
- Funnel capacity : 300 ml
- Storage bottle capacity : 1000ml
- Filter diameter : 47 mm
- Effective filtration area : 9.6 cm²
- Hose barb : 5/16 inch

Ordering Information :

- 189302-11(22), Rocker 300C - VF 12, Vacuum Filtration System

- 189300-11(22), Rocker 300C Vacuum Pump AC110V, 60Hz (AC220V, 50Hz)

- 167200-12, VF12 Glass Filtration Set

- 167120-31, 300ml Glass filter holder

- 167210-03, Glass funnel, 300 ml

- 167240-01, Anodized aluminum clamp

- 167230-03, Glass support base

- 167110-16, Silicone stopper (No.8)

- 197000-65, Filtration adaptor

- 197000-59, 1000ml Glass storage bottle
