Description

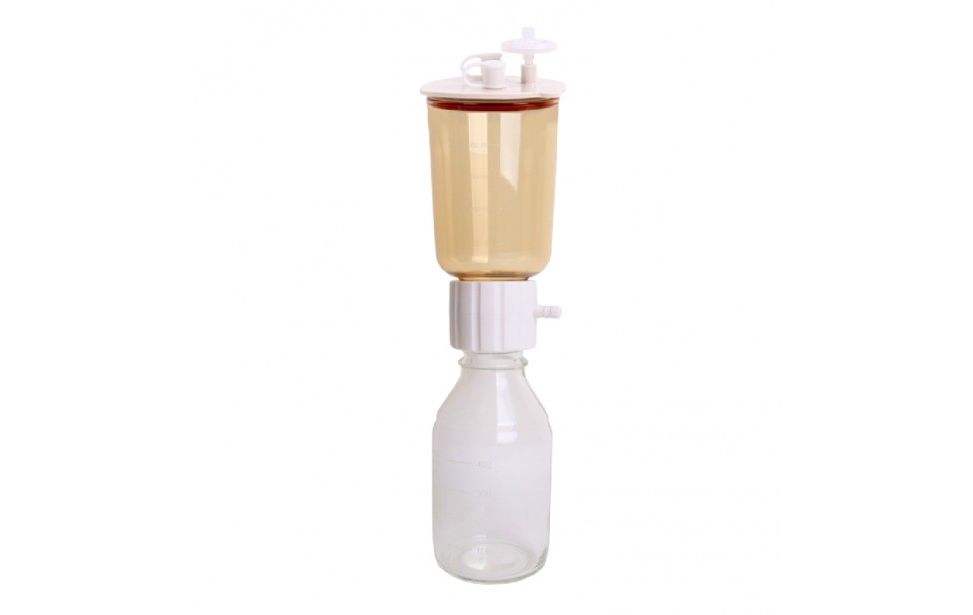

LF 5a - 500

Filtration Set

Features :
- Spin-lock connection facilitates fast and stable installation without clamp.
- PES structure offers excellent smash, high temperature (180?) resistance and autoclavable.
- Reusable, friendly to the earth and save your money.
- Funnel graduated in 50ml increments for easy measurement.
- LF 3/5 equips with No.16 stopper that allows it to the other receiver Flasks.
- LF 3a/5a is available to fit different tissue bottle.

Applications :
- General filtration
- Waste suction

Material :
- Filter funnel - PES
- Funnel support base - PC
- Membrane support - PP
- Funnel cover - PP (optional for LF 5a)
- Cap of lid - Silicone
- Syringe filter - PTFE

Specification :
- Funnel capacity : 500 ml
- Filter diameter : 47mm / 50mm
- Effective filtration area : 12.5 cm²
- Syringe filter : 25 mm, 0.2μm
- Lid inlet fitting diameter : 7 mm

Ordering Information :

- 197010-34, LF 5a - 500 filtration set
- 197000-04, LF 5a 500 ml PES filter holder
- 197000-56, 500ml PES funnel
- 197000-38, Tissue bottle adaptor
- 197000-37, Support screen
- 197500-58, 500m Tissue bottle
