Description

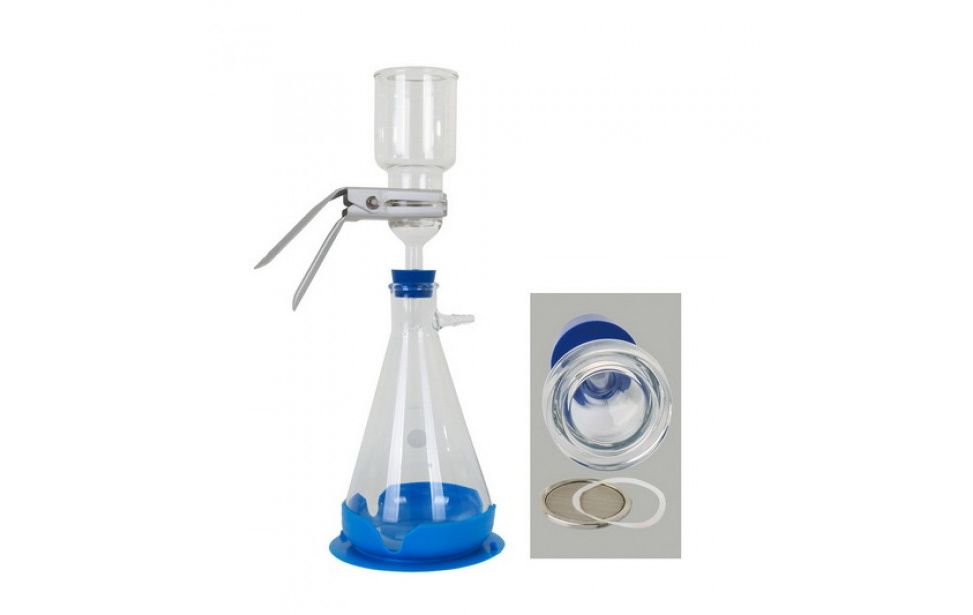

VF 7

Filtration Set

Feature :

- The stainless steel screen with PTFE seal only needs a simple cleaning can be reused

Applications :

- Ideal for solvent purification and general filtration for microbiology, suspended solid analysis etc..

Material :

- Filter funnel - Borosilicate glass

- Funnel support base - Borosilicate glass

- Membrane support - Sintered glass with TFE seal

- Clamp - Anodized aluminum

- Stopper - Silicone rubber (No.8)

- Receiver flask - Borosilicate glass

Specification :

- Funnel capacity : 300 ml

- Flask capacity : 1000 mm

- Filter diameter : 47 mm

- Effective filtration area : 9.6 cm²

- Hose barb : 5/16 inch

Complete Set Include :

- 300 ml Glass filter holder

- Silicon stopper (No.8)

- 1000 ml Receiver flask

- Silicone fixing sucker

Ordering Information :

- 167200-07, VF7, 47 mm Glass Filtration Set

- 167120-33, 300 ml Glass filter holder

- 167210-03, Glass funnel, 300 ml

- 167240-01, Anodized aluminum clamp

- 167230-31, Stainless steel support screen

- 167230-41, PTFE gasket

- 167230-07, Glass support base

- 167110-16, Silicone stopper (No.8)

- 167250-03, Receiver flask, 1000 ml

- 167200-45, Silicone fixing sucker
