Description

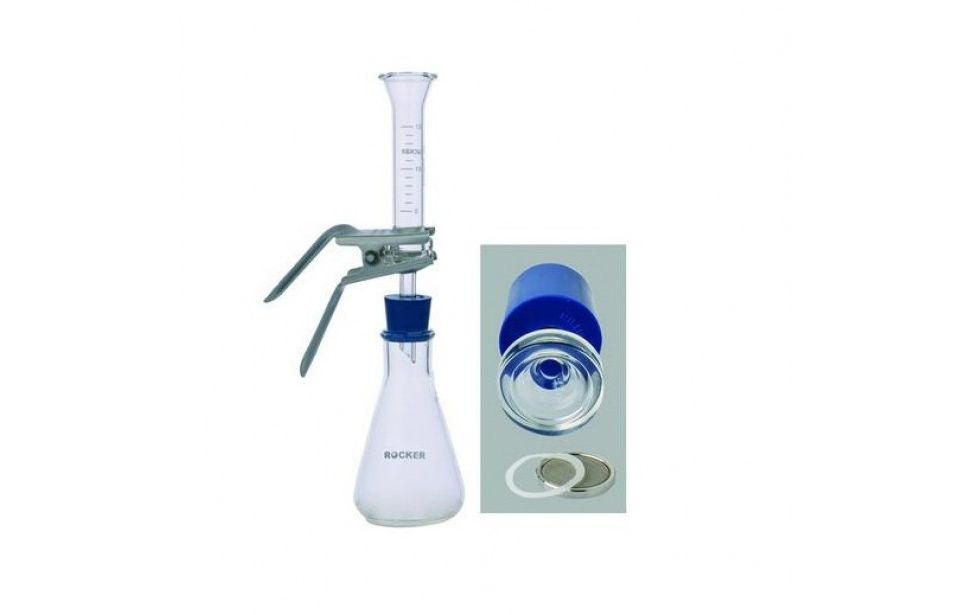

VF 8

Filtration Set

Applications :

- Ideal for small volume vacuum filtration for biological analysis or particulate contamination analysis.

Material :

- Filter funnel - Borosilicate glass

- Funnel support base - Borosilicate glass

- Membrane support - Sintered glass with TFE seal

- Clamp - Anodized aluminum

- Stopper - Silicone rubber (No.5)

- Receiver flask - Borosilicate glass

Specification :

- Funnel capacity : 15 ml

- Flask capacity : 125 mm

- Filter diameter : 25 mm

- Effective filtration area : 2.2 cm²

- Hose barb : 5/16 inch

Ordering Information :

- 167200-08, VF8, 25mm Glass Microanalysis Filtration Set

- 167120-34, 15 ml Glass filter holder

- 167220-15, Glass funnel, 15 ml

- 167240-05, Anodized aluminum clamp

- 167230-32, Stainless steel support screen

- 167230-42, PTFE gasket

- 167230-08, Glass support base

- 167110-05, Silicone stopper (No.5)

- 167250-05, Receiver flask, 125 ml
