Description

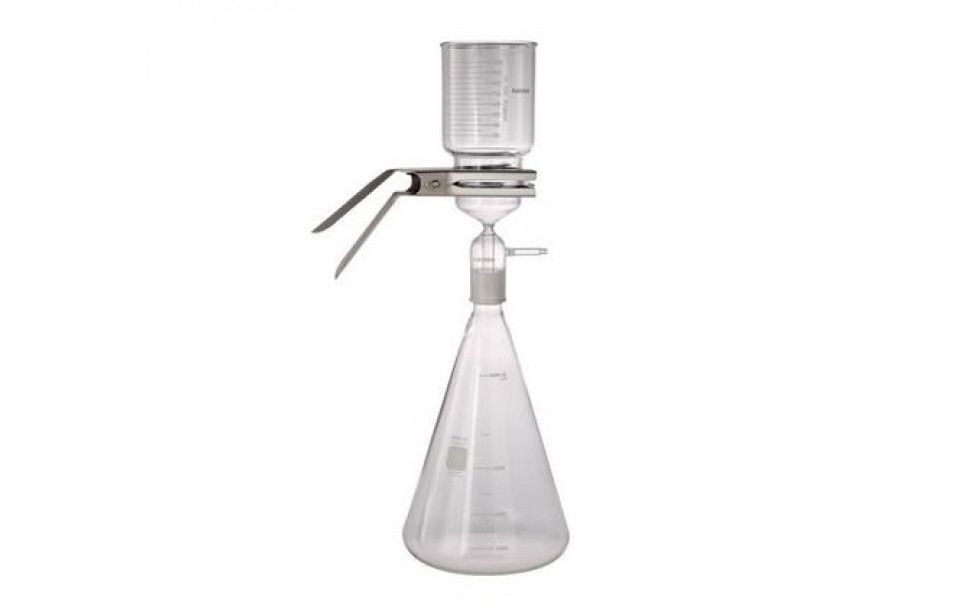

VF10

Filtration Set

Feature :

- The stainless steel screen with PTFE seal only needs a simple cleaning can be reused.

Applications :

- Ideal for the purification of organic, corrosive liquid such as solvent (mobile phase) for HPLC analysis.

Material :

- Filter funnel - Borosilicate glass

- Funnel support base - Borosilicate glass

- Membrane support - Copper support screen with PTFE coating

- PTFE seal

- Clamp - Anodized aluminum

- Receiver flask - Borosilicate glass

Specification :

- Funnel capacity : 1000 ml

- Flask capacity : 4000 mm

- Filter diameter : 90 mm

- Effective filtration area : 40.6 cm²

- Hose barb : 5/16 inch

Complete Set Include :

- 1000 ml Glass filter holder

- Anodized aluminum clamp

- 4000 ml Ground joint flask

Ordering Information :

- 167200-10, VF10, 90 mm Glass Filtration Set

- 167120-35, 1000ml Glass filter holder

- 167210-10, Glass funnel, 1000 ml

- 167240-02, Anodized aluminum clamp

- 167230-33, PTFE coating support screen

- 167230-43, PTFE gasket

- 167230-09, Glass support base&tubulated cap

- 167250-06, Ground joint flask, 4000 ml
