Description

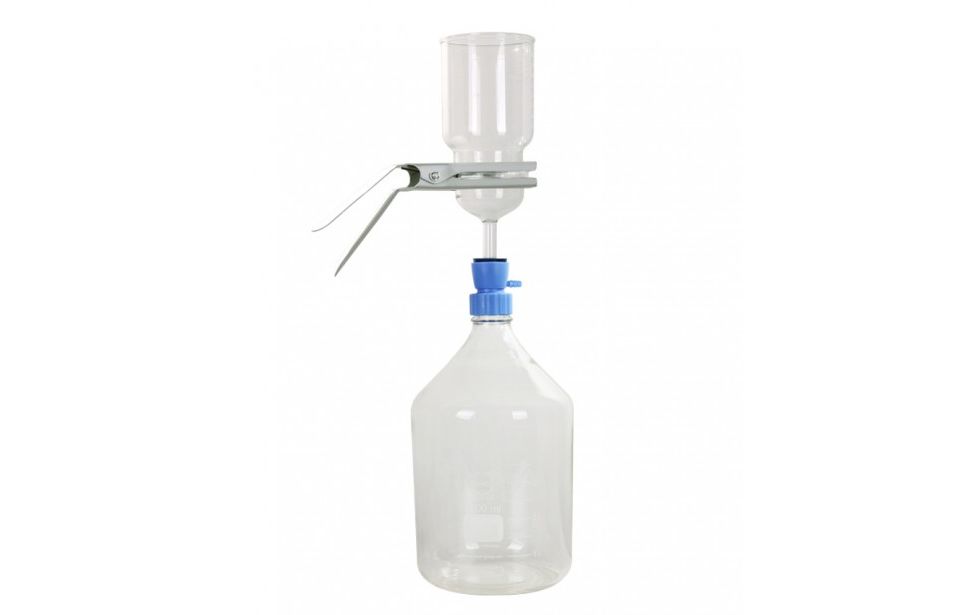

VF15

Filtration Set

Feature :

- Save Time

VF 15 can filtrate and store solution directly in GL45 storage bottle without the need of being transferred from the filtering flask.

- Suitable for GL45 storage bottle

Unique filtration adaptor design can connect with GL45 storage bottle (1000ml, 2000ml, 5000ml…etc.)

- Competitive Price

The whole set is offered at a more competitive price than common filtration set with filtering flask.

- Patent, No.M508321

Filtration Adaptor has been awarded a patent, No.M508321

Applications :

- Ideal for the purification of organic, corrosive liquid such as solvent (mobile phase) for HPLC analysis.

Material :

- Filter funnel - Borosilicate glass

- Funnel support base - Borosilicate glass

- Membrane support - Sintered glass

- Membrane support - Copper support screen with PTFE coating

- PTFE seal

- Clamp - Anodized aluminum

- Stopper - Silicone rubber (No.8)

- Filtration adaptor - PP

- Storage bottle - Borosilicate glass

Specification :

- Funnel capacity : 1000 ml

- Flask capacity : 5000 mm

- Filter diameter : 90 mm

- Effective filtration area : 40.6 cm²

- Hose barb : 5/16 inch

Complete Set Include :

- 1000ml Glass filter holder

- Silicon stopper (No.8)

- Filtration Adaptor

- 5000ml Storage Bottle

Ordering Information :

- 167200-15, VF15 Glass Filtration Set

- 167120-37, 1000ml Glass filter holder

- 167210-10, Glass funnel, 1000 ml

- 167240-02, Anodized aluminum clamp

- 167230-10, Glass support base (Including No.8 silicone stopper )

- 197000-65, Filtration adaptor

- 197000-55, 5000ml Glass storage bottle
