PRODUCT | C-MAG MS 4
- Product name : C-MAG MS 4
- Category : Magnetic Stirrer » Ika
- Catalog : C-MAG_MS_4_support.pdf
Description

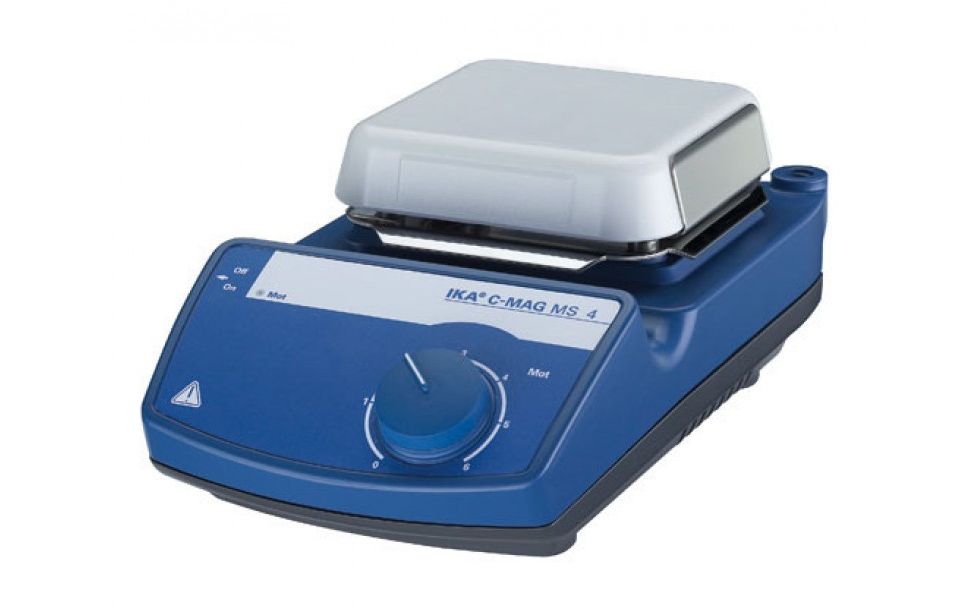

C-MAG MS 4
Magnetic stirrer without heating. With ceramic set-up plate which offers excellent chemical resistance.
- Powerful motor for stirring quantities of up to 5 l (H2O)
- Elevated control panel for protection against leaking liquids
- Speed range: 100 - 1500 rpm
Technical data :
- Width : 150mm
- Power input : 30W
- Height : 105mm
- Speed min. : 100rpm
- Voltage : 230V
- Motor rating output : 1.5W
- Weight : 3kg
- Set-up plate dimensions : 100 x 100mm
- Stirring quantity max. per stirring position (H2O) : 5l
- Depth : 260mm
- Speed max. : 1500rpm
- Set-up plate material : ceramic
- Speed control : scale 0 - 6
- Protection class according to DIN EN 60529 : IP 21
- Direction of rotation : left
- Permissible ambient temperature min. : 5°C
- Frequency : 50/60Hz
- Permissible relative humidity : 80%
- Permissible ambient temperature max. : 40°C
- Number of stirring positions : 1
