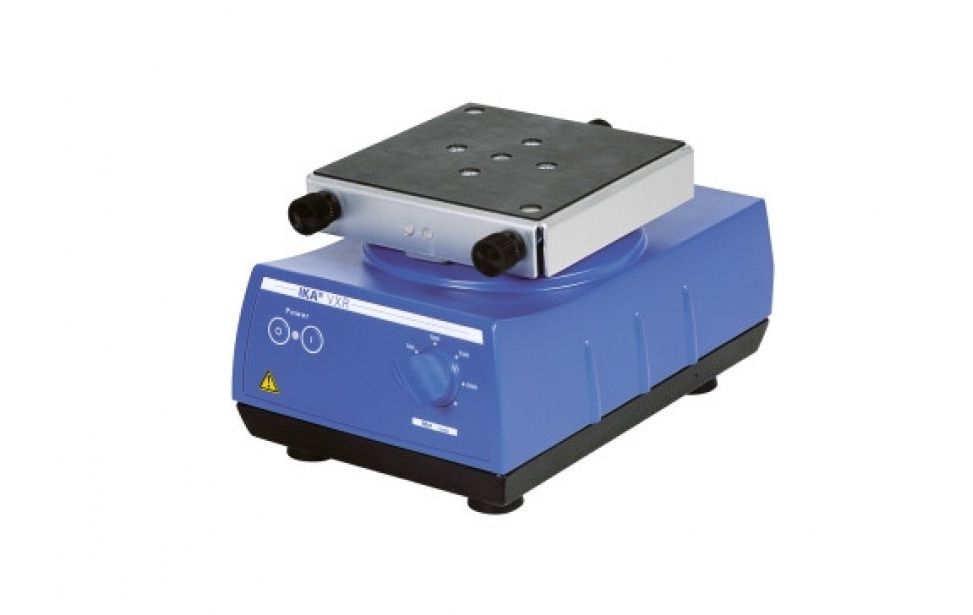

VXR basic Vibrax®

Shakers

Optoelectronically controlled small shaker with a very wide speed range (0 - 2200 rpm).

- Suitable for continuous operation

- New design and improved drive system

- Circular shaking motions

- Slow speeds are well maintained

- Attachments are interchangeable

Technical data :

- Motor rating output : 13.2W

- Speed max. : 2200rpm

- Motor rating input : 35W

- Power input : 45W

- Permissible ON time : 100%

- Permissible shaking weight (incl. Attachment) : 2kg

- Speed min (adjustable) : 100rpm

- Weight : 6.1kg

- Voltage : 220 - 240/100 - 120V

- Height : 130mm

- Depth : 247mm

- Width : 157mm

- Shaker diameter : 4mm

- Frequency : 50/60Hz

- Shaking table lock : no

- Protection class according to DIN EN 60529 : IP 21

- Type of movement : orbital

- Analog output : no

- RS 232 interface : no

- Working with microtiter plates : no

- Operating mode : continuous operation

- Permissible ambient temperature max. : 40°C

- Permissible relative humidity : 80%

- Permissible ambient temperature min. : 5°C

- Speed min. : 0rpm

- Speed display : scale

- Timer : no
