Description

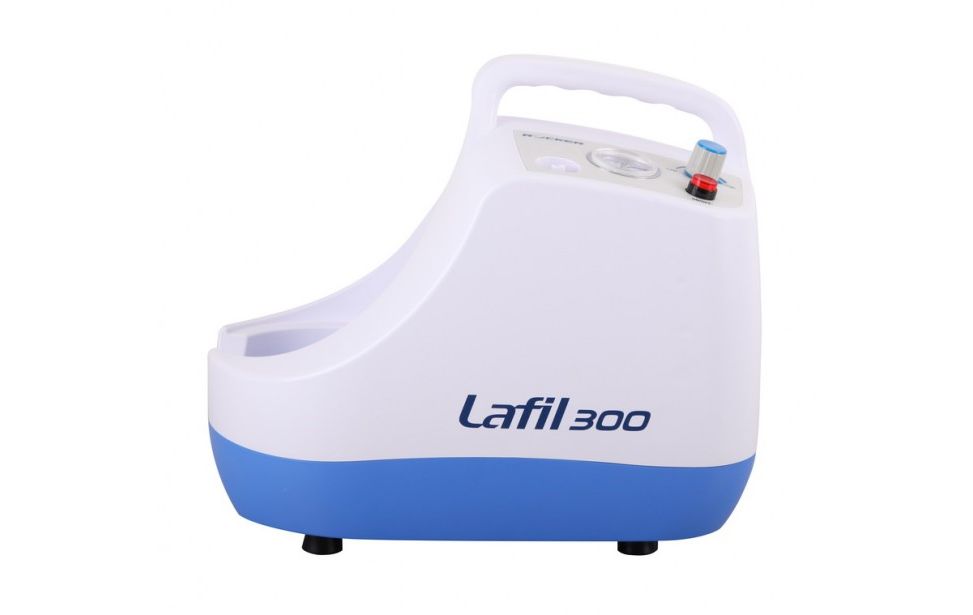

Lafil 300

Oil Free Vacuum Pump

Feature :

- Compact and safe operation

Lafil series vacuum pump is an unique filtration system by combining vacuum source with filtration ware. Its compact design can save much bench space than the traditional ones. With a fence-like platform design, it can prevent user’s negligence from tipping over the waste bottle.

- No air pollution, maintenance free
Lafil series pumps are driven by Piston, without the need of lubricant, regular oil changes and maintenance; with no oil pollution.

- Thermal protection device

Every motor of Rocker series pumps has a built-in thermal protection device to shut off the pump automatically when overheated and then resume working when the temperature cools down.

International safety certification :

- CE certification

- CSA certification

Applications :

- Filtration for microbiology test

- Air sampling

- Suspended solid test

- Vacuum filtration

Specification :

• Max. power: 60W

• Max. current: 0.3A

• Max. vacuum: 99 mbar abs.

• Max. flow rate: 20 L/min

• Motor rotation speed: 1450 RPM

• Horse power: 1/8 HP

• Noise level: 50 dB

• Hose barb: ID8 (5/16 inch)

• Net weight: 5.9 Kg

• Dimension (LxWxH): 33.5 x 24.5 x 30

• Vacuum Regulator: Yes

• Thermal protection: Yes

Complete Set Include :

- 1000ml Glass filter holder

- Silicon stopper (No.8)

- Filtration Adaptor

- 5000ml Storage Bottle

Ordering Information :

197300-22, Lafil 300, Vacuum Pump, AC220V, 50Hz
