Description

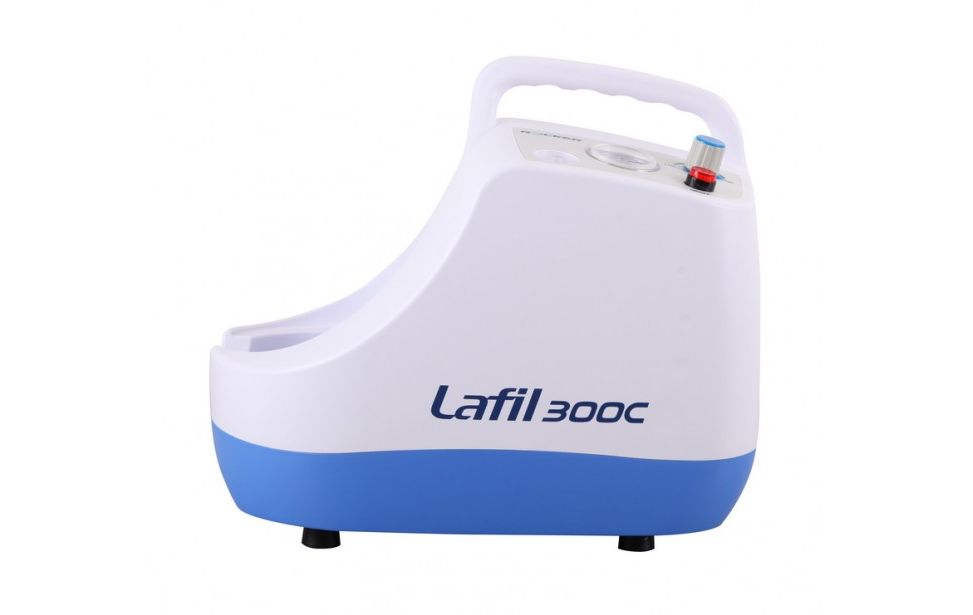

Lafil 300C

PTFE Coated Vacuum Pump

Feature :

- Compact and safe operation

Lafil series vacuum pump is an unique filtration system by combining vacuum source with filtration ware. Its compact design can save much bench space than the traditional ones. With a fence-like platform design, it can prevent user’s negligence from tipping over the waste bottle.

- No air pollution, maintenance free

Lafil 300C vacuum pump is driven by diaphragm, without the need of lubricant, regular oil changes and maintenance with no oil pollution.

- Good chemical resistance

The diaphragm chamber of Rocker 300C coated with PTFE and the SS # 316 valve plate can offer good resistance to a wide range of corrosive gases.

- Thermal protection device

Every motor of Rocker series pumps has a built-in thermal protection device to shut off the pump automatically when overheated and then resume working when the temperature cools down.

International safety certification :

- CE certification

Applications :

- Vacuum filtration

- Solvent purification

Specification :

• Max. power: 60W

• Max.current: 0.3A

• Max.vacuum: 99 mbar abs.

• Max.flow rate: 20 L/min

• Motor rotation speed: 1450 RPM

• Horsepower: 1/8 HP

• Noise level: 50 dB

• Hose barb: ID8 (5/16 inch)

• Net weight: 5.9 Kg

• Dimension (L*W*H): 35 x 24.3 x 29 cm

• Vacuum regulator: Yes

Ordering Information :

197330-22, Lafil 300C, PTFE Coated Chemical, Resistant Vacuum Pump,AC220V, 50Hz
