Product Size

-

Baseline Flatness

±0.002A

Compartments

Accessible from top, front or side
Able to accommodate cells up to 100mm cells
Available accessory for test-tubes up to 25 mm diameter and 150 mm height
Removable, washable sample compartment liner with magnetic placement and hold-down

Connections

Single USB-A supports flash memory devices for method and data storage

Duplex USB-A on side supports connection to a Windows™ computer running optional remote control software, keyboard, mouse

Export data to network or PC via USB, Ethernet, or Wi-Fi

Description

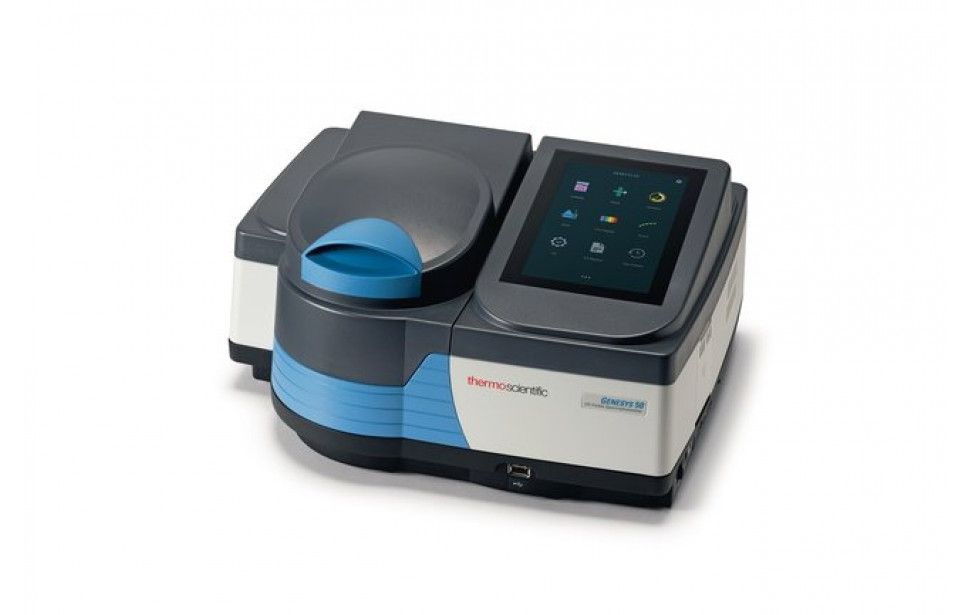

GENESYS 50 UV-Vis Spectrophotometer

Detector Type

Dual Silicon Photodiodes

Dimensions (L x W)

35.5 x 38.5 x 19.5 cm

Display

7-inch color touchscreen, fixed, high definition, 800 × 1280 pixels

Drift

(At 500 nm after 1 hour warmup) <0.0010A/Hr

Electrical Requirements

External AC to DC converter. Voltage and Frequency (Hz) selected automatically, 100–240 volts, 50–60 Hz.

Keypad

Touchscreen

Lamp

Xenon Flash Lamp (>5 years typical, 3 years guaranteed)

Noise

(RMS at 500 nm 60 consecutive measurements)

≤0.00020A at 0A at 260 and 500 nm

≤0.00030A at 1A at 260 and 500 nm

≤0.00040A at 2A at 260 and 500 nm

Optical Design

Dual beam

Photometric Accuracy Instrument

±0.002A at 0.5A

±0.004A at 1.0A

±0.008A at 2.0A

Photometric Display

-3A to +5A

Photometric Range

–2A to +3.5A

Photometric Repeatability

±0.001A at 1A measured at 1.0A at 546 nm

Printer

Snap-on printer available

Resolution

0.2 nm, 0.5 nm, 1 nm, 2 nm, 5 nm

Spectral Bandwidth

2 nm

Stray Light

< 1.0%T 198 nm (KCl) , <0.05%T at 220 nm (NaI), <0.03%T at 340 nm (NaNO2)

Wavelength Accuracy

±0.5 nm

Wavelength Range

190 nm – 1100 nm

Wavelength Repeatability

< ±0.2 nm

Wavelength Scan Speed

Slow, medium and fast - up to 1600 nm/min

Weight (Metric)

7.5 kg

Warranty

2 years standard with 1 year extension upon registration of the instrument with Thermo Fisher Scientific within 6 months of purchase
