Description

Furnaces

Ashing Furnaces with Flap Door or Lift Door

The ashing furnaces LV 3/11 - LVT 15/11 are especially designed for ashing in the laboratory. A special air intake and exhaust system allows air exchange of more than 6 times per minute. Incoming air is preheated to ensure a good temperature uniformity.

- Tmax 1100 °C

- Heating from two sides

- Ceramic heating plates with integral heating element which is safeguarded against fumes and splashing, and easy to replace

- Air exchange of more than 6 times per minute

- Good temperature uniformity due to preheating of incoming air

- Insulation made of non-classified fiber material

- Housing made of sheets of textured stainless steel

- Dual shell housing for low external temperatures and stability

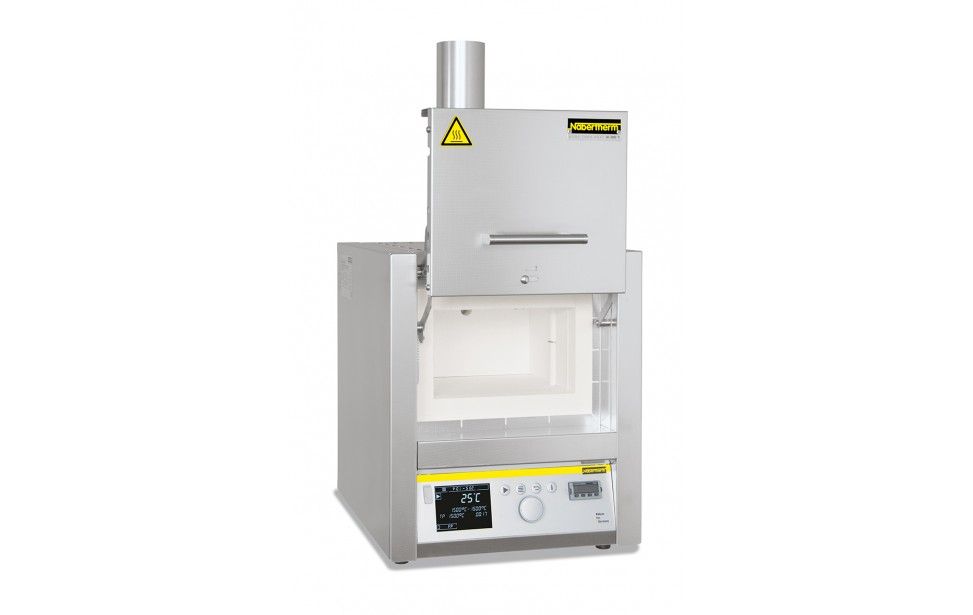

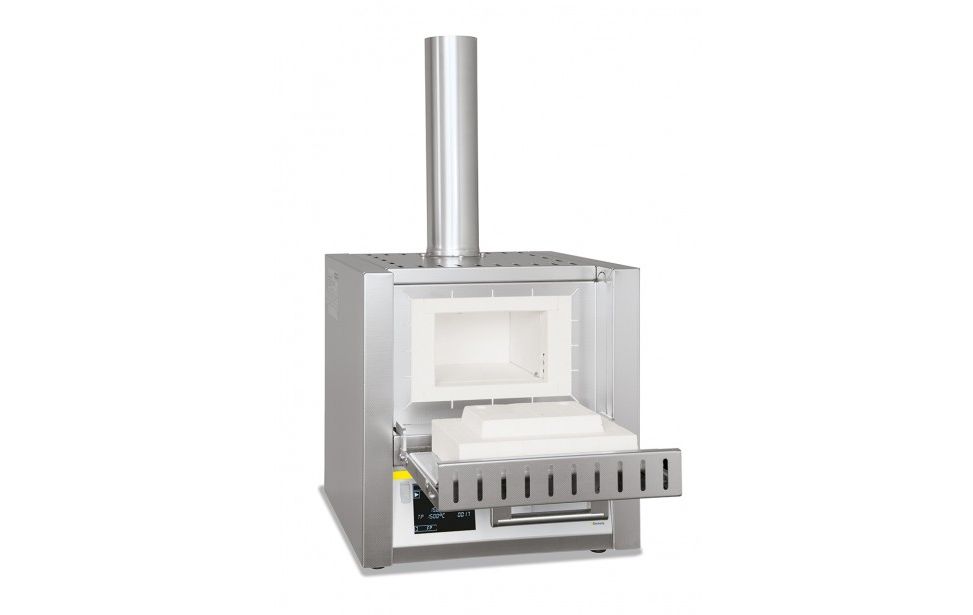

-Optional flap door (LV) which can be used as work platform or lift door (LVT) with hot surface facing away from the operator

- Solid state relays provide for lownoise operation

- Defined application within the constraints of the operating instructions

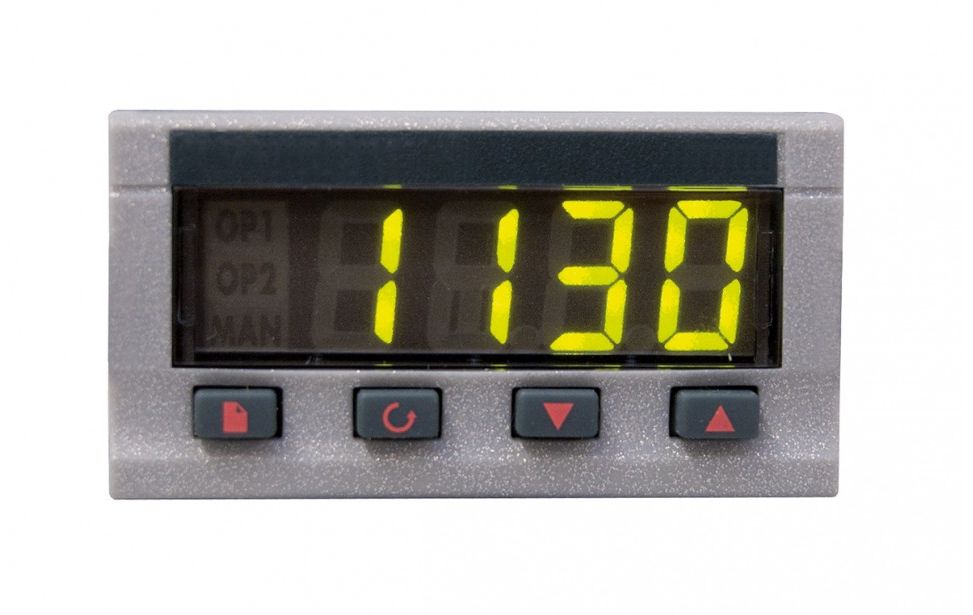

- NTLog Basic for Nabertherm controller: recording of process data with USB-flash drive

Additional equipment :

- Over-temperature limiter with adjustable cutout temperature for thermal protection class 2 in accordance with EN 60519-2 as temperature limiter to protect the furnace and load

- Process control and documentation via VCD software package for monitoring, documentation and control
