PRODUCT | ATE
- Product name : ATE
- Category : Magnetic Stirrer » Velp
- Catalog : ATE_support.pdf
Description

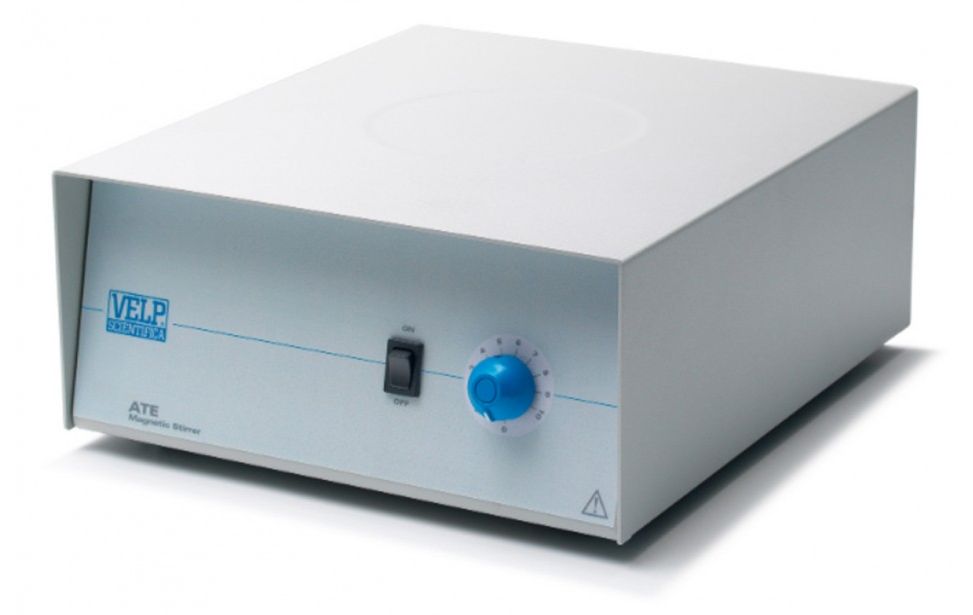

ATE Magnetic Stirrer
High power magnetic stirrer suitable for medium-high volumes.
Proven Reliability
- Control panel is shielded from liquid spills
- Epoxy-coated tough steel casing
- Accepts up to 25 liter flask
- Designed for the longest lifespan and guaranteed by 3 years warranty
Applications in Mind
- High power for viscous liquids
- Pale surface for visualization of particles and color changes
- Soft start but rapidly reaching set speed
Simple & Practical
- Speed regulation up to 1200 rpm
- Choice of mains voltage / frequency model
GENERAL FEATURES :
|
Models: |
- ATE, 230 V / 50-60 Hz, Cat. No. : F20300165 - ATE, 115 V / 50-60 Hz, Cat. No. : F20310165 |
|
Construction material: |
epoxy painted metal structure |
|
Power: |
25 W |
|
Weight: |
3.7 Kg (8.1 lb) |
|
Dimensions (WxHxD): |
250x120x285 mm (9.8x4.7x11.2 in) |
|
|
|
|
PERFORMANCE |
|
|
Electronic speed regualtion: |
up to 1200 rpm |
|
Stirring volume (H2O): |
up to 25 liters |
|
Stirring system |
high-power driving magnet type ''PCM'' operated by a mono-phase motor for continuous operation |
