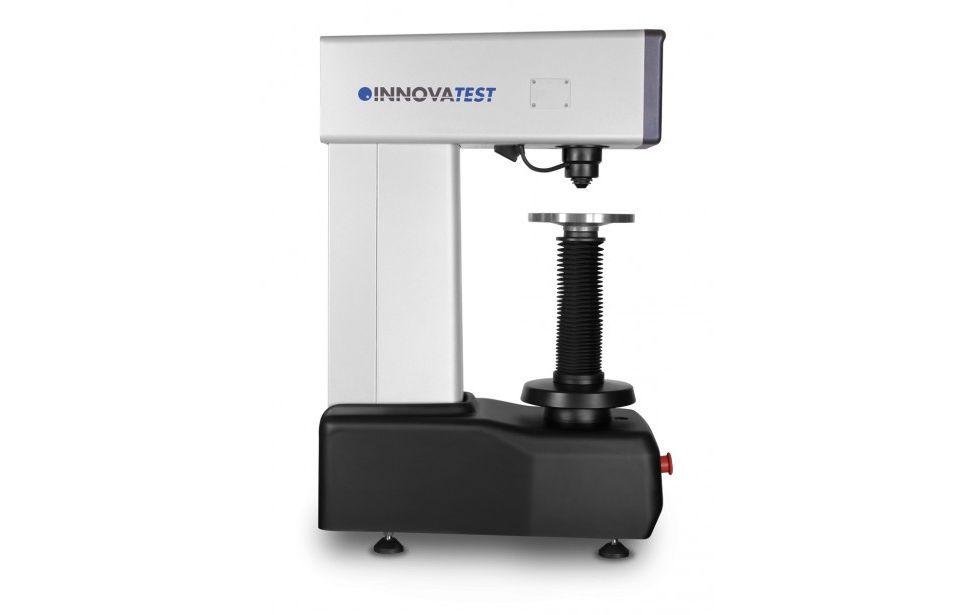

VERZUS 710RSB
ROCKWELL HARDNESS TESTER
The VERZUS 700 series are a new generation of hardness testing instruments. Constructed around a rock solid C-frame with unparalleled rigidity. The closed loop system based on a load cell and precision force actuator guarantees the best GR & R results ever seen on Rockwell hardness testers.
Features :
- Rockwell, Superficial Rockwell, HBT & HVT, Ball indentation for plastic ISO 2039/1
- Load cell, force feedback, closed loop system
- Load range 3Kgf to 250Kgf
- Automatic force setting
- Rockwell Scales: A, B, C, D, E, F, G, H, K, L, M, P, R, S, V, 15N, 30N, 45N, 15T, 30T, 45T, 15W, 30W, 45W, 15X, 30X, 45X, 15Y, 30Y, 45Y
- Brinell Scales: HB1/1, 2.5, 5, 10, 30Kgf; HB2.5/6.25, 15.625, 31.25, 62.5, 187.5Kgf;
HB5/25, 62.5, 125, 250Kgf; HB10/100, 250Kgf;
- HBT Scales: HBT/5Kgf – 250Kgf;
- HVT Scales: HVT/5Kgf – 120Kgf
- Ball indentation for plastic ISO 2039/1
- Motorized spindle (optional)
- Brinell Indent Optical Scanner, BIOS, hand scanner with 5Mpx camera for automatic Brinell measurements
- 6.5’’ Industrial HD Touch screen, Embedded
- Powerful Fanless System Controller, 32GB SSD data storage drive, Windows 7 Embedded, RJ45 LAN, WLAN, USB, RS-232
- IMPRESSIONS™, full tester & configuration control, graphic indent simulation, test program setting for user defined test programs, large test results storage, 5 simultaneous conversions to other hardness scales, limit settings, advanced test report generator, CSV export, graphics display engine & many more functions
- Meets or exceeds ISO, ASTM and JIS standards
- Standard workpiece clamping attachment
- Replaceable body parts, shock proof ABS cover
- Extra large workpiece accommodation
- Motorized spindle (optional)
(Please do not hesitate to contact us if you need brochures)
