PRODUCT | UDK 139
- Product name : UDK 139
- Category : Kjeldahl Distillation Unit » Velp
- Catalog : UDK_139_support.pdf
Description

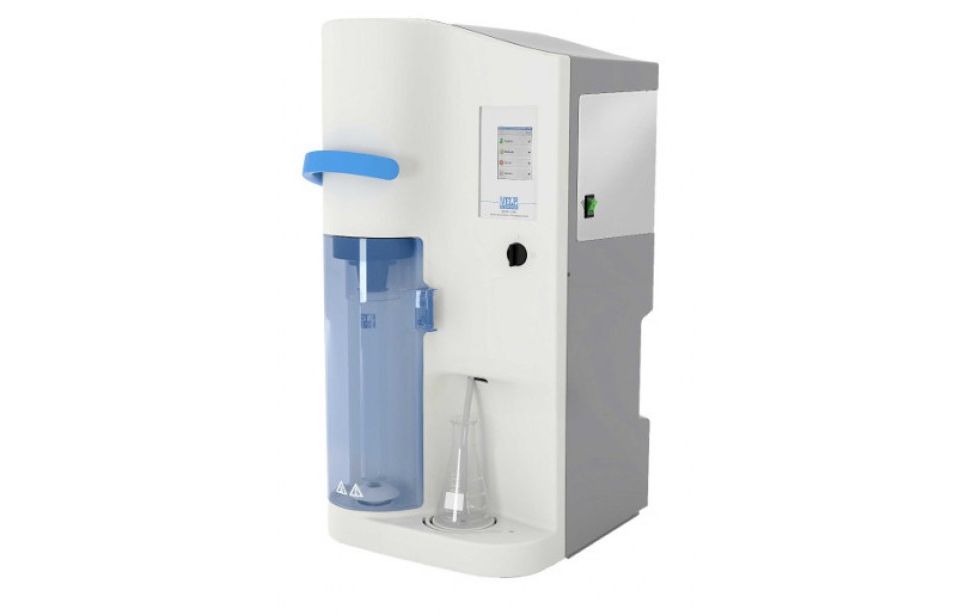

UDK 139
Semi-Automatic Kjeldahl Distillation Unit
Semi-automatic Kjeldahl distillation unit for your analyses concerning different applications such as determining ammoniacal nitrogen, protein determination, nitrogen content (Kjeldahl or direct alkaline distillation), nitric nitrogen (after reduction/Devarda), phenols, volatile acids, cyanides and alcohol content.
Automated Operation :
- Programmable water, sodium hydroxide addition and distillation time
- Selectable steam generation output level 10% – 100%
- Auto removal of residues from sample tube
High Tech :
- 3.5 inch color touch screen
- Library of 10 customizable methods
- Choice of 6 languages
- Mouse & printer USB connections
- No loss of nitrogen: distillate temperature stays below threshold
- Accurate dosing of reagents with high precision pumps
Outstanding Reliability :
- Maintenance-free, resistant, patented steam generator
- Patented titanium condenser for unmatched performance
- Durable technopolymer splash head
- Chemically-resistant technopolymer housing
Operator Safety :
- Lever operation simplifies tube insertion / removal (all sizes)
- Protection screen for distillation chamber
- Drip tray collects splashes
- Zero pressure steam generator
Ecology & Standards :
- Performs to AOAC, EPA, DIN and ISO standards
- Incorporates TEMS™ technology*
- Automated water supply control reduces consumption
General Features :
|
Model : |
UDK 139, 230 V / 50 - 60 Hz, Cat. No. : F30200130 |
|
Structure: |
Corrosion-resistant technopolymer |
|
Display: |
3.5" color touch screen |
|
Time related to start for Devarda alloy analysis: |
0 – 99 min |
|
Protocol library: |
10 customizable methods |
|
Reproducibility (RSD): |
≤ 1 % |
|
Recovery: |
≥ 99.5 % at nitrogen levels between 1 and 200 mg N |
|
Detection Limit: |
≥ 0.1 mg N |
|
Power: |
2100 W |
|
Weight: |
26 kg / 57.3 lb |
|
Dimensions (WxHxD): |
385x780x416 mm (15.2x30.7x16.4 in) |
|
|
|
|
PERFORMANCE |
|
|
Distillation time: |
4 minutes to collect 100 ml of distillate |
|
Sodium hydroxide addition: |
automatic |
|
Water addition: |
automatic |
|
Sodium hydroxide volume: |
0 - 150 ml |
|
Water volume: |
0 - 200 ml |
|
Distillation time: |
settable |
|
Distillation residues removal: |
automatic |
|
Steam flow regulation: |
from 10 to 100 % |
|
Tap water consumption: |
from 0,5 l/min at 15 °C – from 1 l/min at 30 °C |
|
Connections: |
2 x USB for printer, mouse |
