PRODUCT | ZX4
- Product name : ZX4
- Category : Vortex Mixer » Velp
- Catalog : ZX4_support.pdf
Description

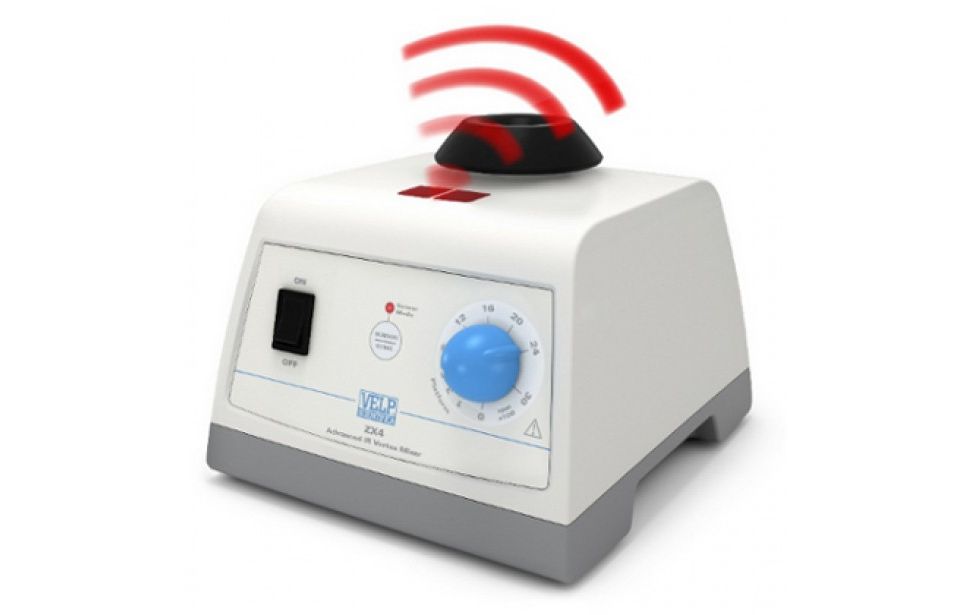

ZX4
Advanced IR Vortex Mixer
Vortex mixer with adjustable stirring speed, in continuous or with the exclusive infrared sensor. No press, No stress!
Optimized Efficiency :
- Vibration starts when tube is detected by IR (VELP patent)
- No fatigue as no pressure is required
- Eliminates repetitive strain injury
- IR sensor and continuous modes
Versatile Operation :
- Variable speed operation, electronically controlled up to 3000 rpm
- Large choice of accessories to suit tubes, plates and flasks
- Universal voltage / frequency model
Long Life Design :
- Accessories fit by simple pressure
- Optimum resistance to chemicals from technopolymer casing
- Excellent stability with zinc alloy base
- Large, anti-slip rubber feet for staying in required position
- IP 42 protection against particles and liquids
|
GENERAL FEATURES |
|
|
Model : |
ZX4, 100-240 V / 50-60 Hz, Cat. No. : F202A0280 |
|
Construction material : |
zinc alloy and technopolymer |
|
Support system : |
4 anti-sliding feet |
|
Orbital diameter : |
4.5 mm |
|
Speed setting : |
analog |
|
Speed control : |
electronic |
|
Speed : |
up to 3000 rpm |
|
Operating modes: |
infrared sensor, continuous |
|
Electronic protection degree CEI EN 60529 : |
IP 42 |
|
Power : |
15 W |
|
Weight : |
2.7 Kg (5.9 lb) |
|
Dimensions (WxHxD) : |
150x130x165 mm (5.9x5.1x6.5 in) |
