PRODUCT | VB300
- Product name : VB300
- Category : Vibration Meter » Extech
- Catalog : VB300_support.pdf
Description

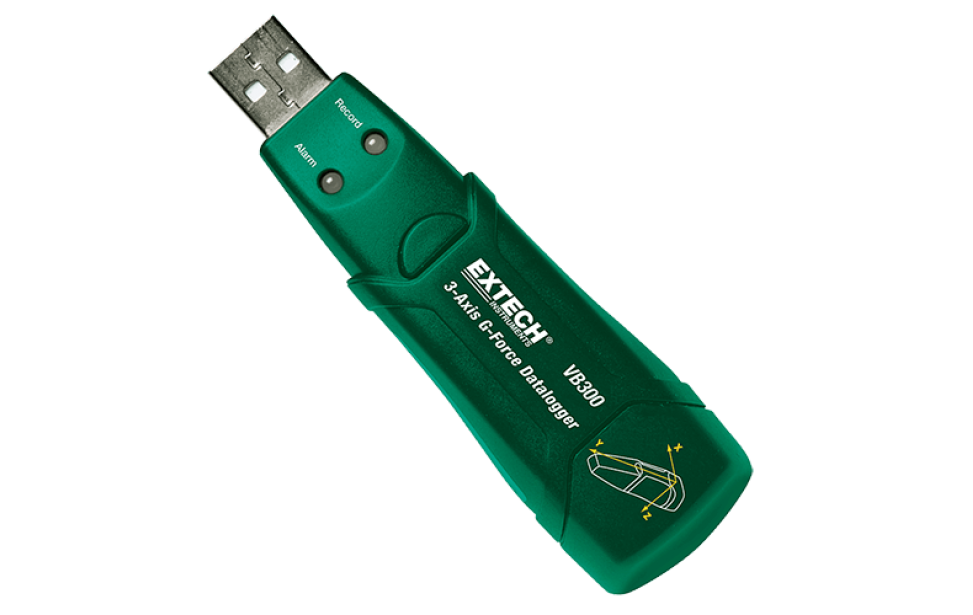

VB300
3-Axis G-Force USB Datalogger
Records and times 3-axis shock and peaks
Features :
- Built-in 3-axis accelerometers record the time when shock occurs
- Real time FFT Frequency and Time-Domain Vibration Analysis
- Record storage, transport or operational data over time
- USB interface for easy set-up and data download
- Datalogs 112028 Motion Detection samples per axis, or 168042 Normal samples
- Selectable X-, Y-, Z-axis or any combination (via software)
- Selectable data sampling rate: 50ms to 24 hours
- Manual and Programmable start modes
- User-programmable alarm threshold
- Long battery life
- Complete with Magnetized/Bolt-on Mounting Base, 3.6V Lithium battery and Windows® compatible analysis software
|
Specifications |
Range |
|
Sensor Type |
MEMS semiconductor |
|
Acceleration Sampling Rate (Datalogger) |
200Hz |
|
Acceleration Range |
±18g |
|
Acceleration Resolution |
0.00625g |
|
Acceleration Accuracy |
±0.5g |
|
Bandwidth |
0 to 60Hz |
|
Sampling rate (Software) |
500 ms to 24 hours |
|
Memory |
4Mbit Flash; 112028 Motion Detection samples per axis, or 168042 Normal samples |
|
Data Format |
Time stamped peak acceleration, average and peak vector sum |
|
Dimensions |
3.7 x 1.1 x 0.8" (95 x 28 x 21mm) |
|
Weight |
1oz (20g) |
