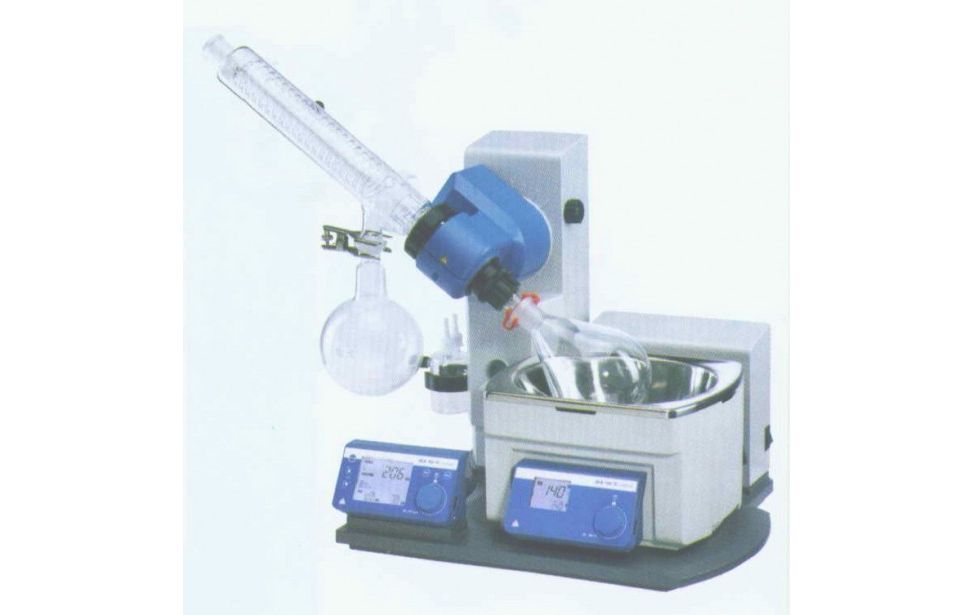

RV 10 Control D

Rotary Evaporators

The RV 10 control is the flagship of the new rotary evaporator series by IKA®. It offers all the functions of the RV 10 basic coupled with the advantages of the RV 10 digital. But the IKA® RV 10 control goes one step further. Like the RV 10 digital, it can be precision controlled via the RS 232 interface for remote PC operation with IKA®‘s labworldsoft® and is thus ideal for automatic operation. And that‘s not all: the control functions also enable completely automatic distillation both for volume-based processes and full drying depending on the area of application. The expandable solvent library also allows you to incorporate new processes in the future – safely, reliably and with a full log.

- Integrated vacuum controller with central display for automatic distilling and ramp programming

- Integrated solvent library, which can be extended by the user

- Distillation specific parameters stored for standard distillation

- Automatic transfer of measurements and distillation type with one key press

- Programmable volume controlled distillation

- Automatic boiling point recognition

- Colour graphic display for safe and comfortable operation

- Display of distillation curves

- Multiple languages

- Automatic ventilation at the end of the test

- Cooling water switched off automatically at the end of the test

- Integrated cooling water monitoring

- Heating bath safety management: automatic heating bath monitoring with distillation stop in

case of temperature errors

- Heating bath switched off automatically at the end of the test

- USB interface

Technical Data :

- Cooler type : diagonal

- Cooling surface : 1.200 cm²

- Motor type : DC drive motor

- Motor rating input : 50 W

- Speed range : 20 – 270 rpm

- Speed display : digital

- Right and left movement / interval operation : yes

- Smooth start : yes

- Head angle adjustable : 0 – 45°

- Stroke displacement : 140 mm, motorised

- Setting of lower end stop : 60 mm, contact-free

- Vacuum controller : integrated

- Heating bath : HB 10 control

- Temperature range : RT – 180 °C

- Heating power : 1.300 W

- Controller : micro controller

- Temperature display : digital

- Setting accuracy scale : 1 K

-Control deviation : ± 1 K

Required accessories for an existing vacuum

- Magnetic valve in-house vacuum : RV 10.4001

- Magnetic valve laboratory vacuum : RV 10.4002

- Pump control incl. magnetic valve : RV 10.4003

Accessory recommended for tap water (faucet) connection

- Choke water valve : RV 10.5001

- Filter : RV 10.5002

- Pressure regulating valve : RV 10.5003

General data

- Dimensions without glassware (W x D x H) : 530 x 410 x 570 mm

- RV 10 diagonal (W x D x H) : 890 x 410 x 670 mm

- Weight of evaporator incl. heating bath without glass parts : 21,5 kg

- Permitted ambient temperature : 5 – 40 °C
