PRODUCT |  C-MAG HP 10

  •  Product name : C-MAG HP 10
  •  Category : Hotplate » Ika
  •  Catalog : C-MAG_HP_10_support.pdf

Description

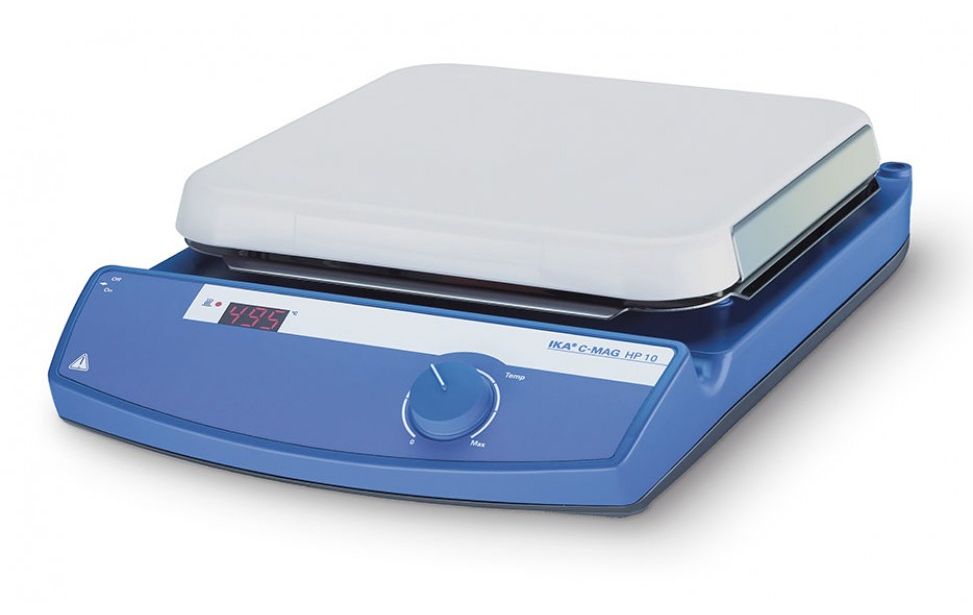

C-MAG HP 10

Hotplate



Made of ceramic glass which offers excellent chemical resistance.



• Fixed safety circuit of 550 °C

• Hot Top indicator >> hot surface warning to prevent burns!!

• Exact temperature setting via digital display (LED)

• Bushing according to DIN 12878 for connecting a contact thermometer, e.g. ETS-D5, enables precise temperature control

• Digital error code display

• Elevated control panel for protection against leaking liquids



Technical Data :

Number of heating points

1

Heat output

1500 W

Heating temperature range

50 - 500 °C

Heat control

LED

Set temperature resolution

10 ±K

Connection for ext. temperature sensor

ETS-D5

Volume max.

15 l

Heating rate heating plate

5 K/min

Set-up plate material

ceramic

Set-up plate dimensions

260 x 260 mm

Dimensions (W x H x D)

300 x 105 x 415 mm

Weight

6 kg

Permissible ambient temperature

5 - 40 °C

Permissible relative humidity

80 %

Protection class according to DIN EN 60529

IP 21

Voltage

230 / 120 / 100 V

Frequency

50/60 Hz

Power input

1505 W
