PRODUCT | C-MAG HP 4
- Product name : C-MAG HP 4
- Category : Hotplate » Ika
- Catalog : C-MAG_HP_4_support.pdf
Description

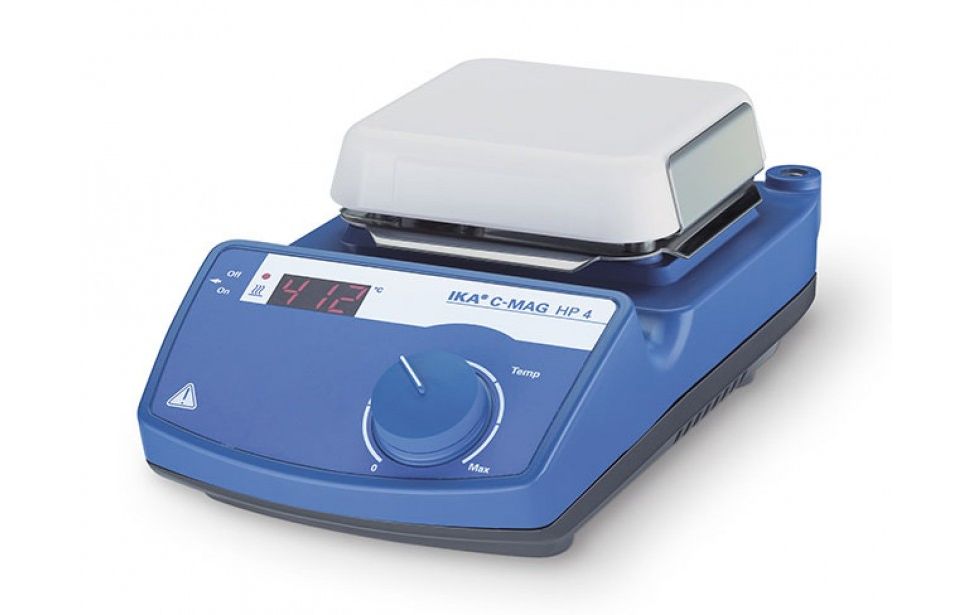

C-MAG HP 4
Hotplate
Made of ceramic glass which offers excellent chemical resistance.
• Fixed safety circuit of 550 °C
• Hot Top indicator >> hot surface warning to prevent burns!!
• Exact temperature setting via digital display (LED)
• Digital error code display
• Elevated control panel for protection against leaking liquids
Technical Data :
|
Number of heating points |
1 |
|
Heat output |
250 W |
|
Heating temperature range |
50 - 500 °C |
|
Heat control |
LED |
|
Set temperature resolution |
10 ±K |
|
Volume max. |
5 l |
|
Heating rate heating plate |
2.5 K/min |
|
Set-up plate material |
ceramic |
|
Set-up plate dimensions |
100 x 100 mm |
|
Dimensions (W x H x D) |
150 x 105 x 260 mm |
|
Weight |
3 kg |
|
Permissible ambient temperature |
5 - 40 °C |
|
Permissible relative humidity |
80 % |
|
Protection class according to DIN EN 60529 |
IP 21 |
|
Voltage |
230 / 120 / 100 V |
|
Frequency |
50/60 Hz |
|
Power input |
255 W |
