PRODUCT | SDL600
- Product name : SDL600
- Category : Sound Level Meter » Extech
- Catalog : SDL600_support.pdf
Description

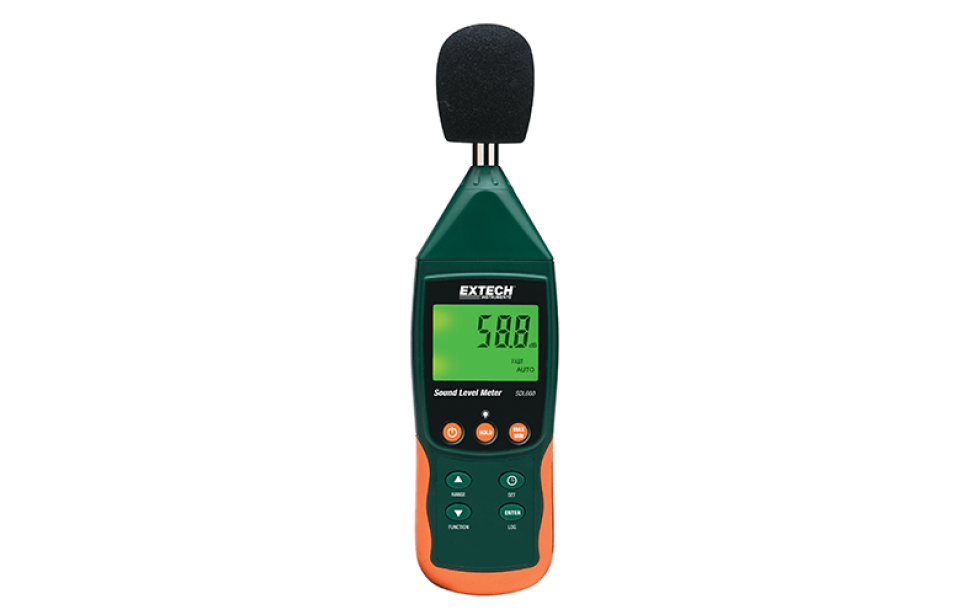

SDL600
Sound Level Meter/Datalogger
The SDL600 records data on an SD card in Excel format. High accuracy ±1.4dB meets ANSI and IEC 61672-1 Type 2 standards. 30 to 130dB measurement range. Auto or Manual ranging. AC analog output for connection to an analyzer or recorder. Large backlit LCD display. Stores 99 readings manually and 20M readings via 2G SD card. Datalogger date/time stamps and stores readings on an SD card in Excel format for easy transfer to a PC. User programmable sampling rate from 1 to 3600 seconds. Featuring Min/Max, Data Hold, and Auto Power Off functions. Complete with 6 AA batteries, SD Card, wind screen, and hard carrying case.
|
Specifications |
Range |
|
Range |
30 to 130dB (3 ranges) |
|
Basic accuracy |
±1.4dB |
|
Frequency Range |
31.5 to 8000Hz |
|
Weighting |
A and C |
|
Response Time |
Fast (125ms) / Slow (1s) |
|
Memory |
20M data records using 2G SD card |
|
Analog Output |
AC |
|
Dimensions |
9.8 x 2.9 x 1.9" (250 x 73 x 48mm) |
|
Weight |
18.3oz (520g) |
