PRODUCT | CLG series
- Product name : CLG series
- Category : Autoclave » ALP
- Catalog : CLG_series_support.pdf
Description
CLG series
A premium model with a cycle similar to the steam-flush pressure -pulse (SFPP) for sterilizing challenging loads.
Vacuum drying enables drying of the wet object by steam (CLG-DVP series)
Specifications :
|
MODEL |

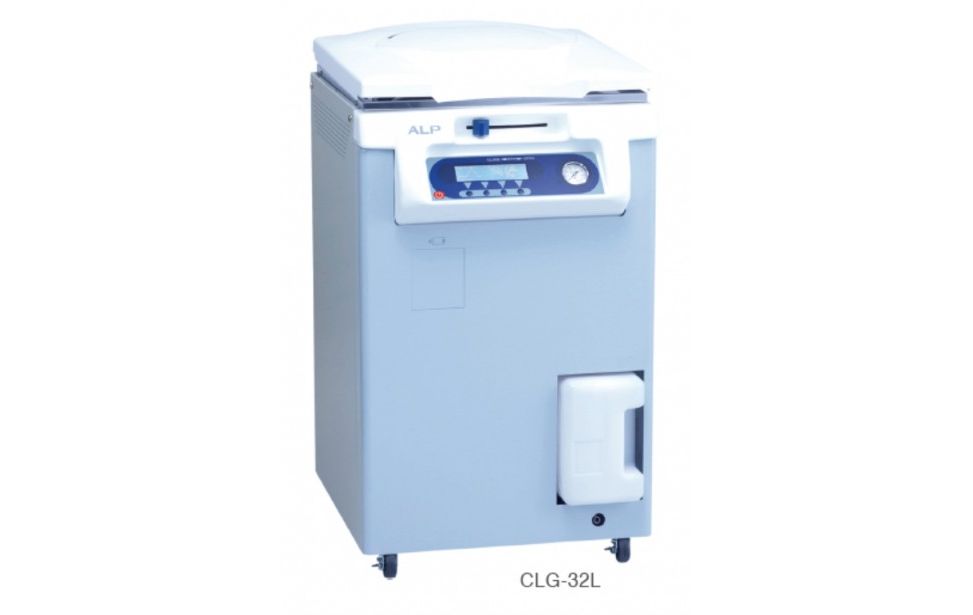

CLG-32L |
CLG-40M |
CLG-40L |
|
Chamber size/volume |
φ320×H660mm/62L |
φ400×H660mm/97L |
φ400×H820mm/117L |
|
Outer dimension/weight |
W550×D620×H990mm/71kg |
W620×D720×H1000mm/88kg |
W620×D720×H1160mm/95kg |
|
Temperature (Max. press.) |
100°C-140°C(0.270MPa) |
100°C-137°C (0.250MPa) |
|
|
Sterilization time |
0 minutes- 48 hours 00 minutes |
||
|
Dissolving temp./time |
40°C-99°C / 0 minutes- 48 hours 00 minutes |
||
|
Warming temp./time |
40°C-60°C / 0 minutes- 48 hours 00 minutes |
||
|
Safety device |
Lid interlock, Lid opening/closing detection, Water lack prevention, Over temperature prevention, Over pressure prevention, Sensor breakage detection, Memory backup, Leakage breaker, Pressure safety valve |
||
|
Power demand |
AC220/230/240V, 11/11/12A |
AC220/230V/240V, 18/19/20A |
|
|
Wire basket/quantity |
φ300×300mm/2 pcs. |
φ380×300mm/2 pcs. |
φ380×400mm/2 pcs. |
|
MODEL |

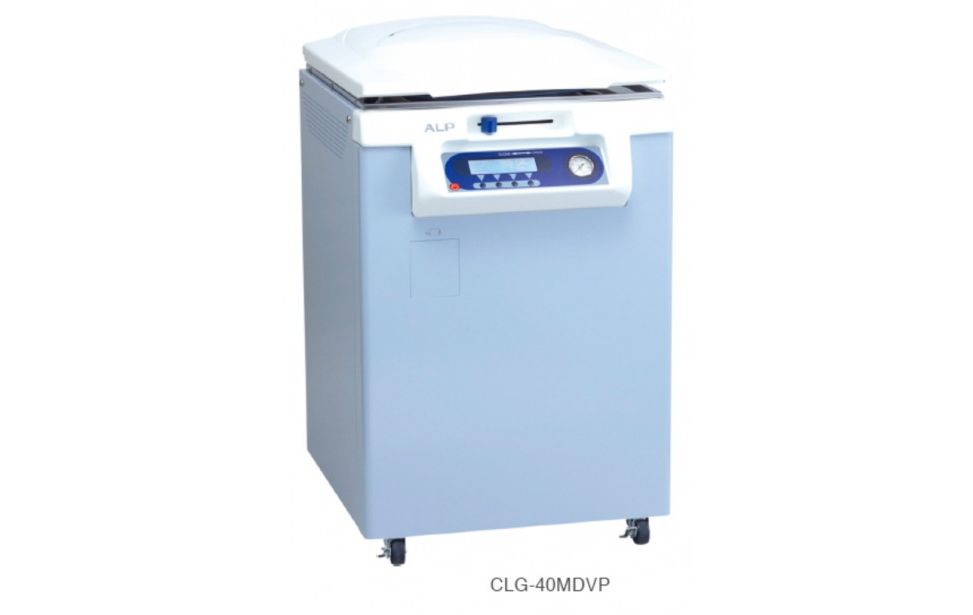

CLG-32LDVP |
CLG-40MDVP |
CLG-40LDVP |
|
Chamber size/volume |
φ320×H660mm/62L |
φ400×H660mm/97L |
φ400×H820mm/117L |
|
Outer dimension/weight |
W550×D720×H990mm/109kg |
W620×D820×H1000mm/127kg |
W620×D820×H1160mm/133kg |
|
Temperature (Max. press.) |
100°C-140°C (0.270MPa) |
100°C-137°C (0.250MPa) |
|
|
Sterilization time |
0 minutes- 48 hours 00 minutes |
||
|
Drying temp./time |
60°C-150°C / 0 minutes- 100 hours 00 minutes |
||
|
Dissolving temp./time |
40°C-99°C / 0 minutes- 48 hours 00 minutes |
||
|
Warming temp./time |
40°C-60°C / 0 minutes- 48 hours 00 minutes |
||
|
Safety device |
Lid interlock, Lid opening/closing detection, Water lack prevention, Over temperature prevention, Over pressure prevention, Sensor breakage detection, Memory backup, Leakage breaker, Pressure safety valve, Vacuum pump protection circuit |
||
|
Power demand |
AC220/230/240V,14/14/15A |
AC220/230V/240A, 21/21/22A |
|
|
Wire basket/quantity |
φ300×300mm/2 pcs. |
φ380×300mm/2 pcs. |
φ380×400mm/2 pcs. |
