PRODUCT | CL series
- Product name : CL series
- Category : Autoclave » ALP
- Catalog : CL_series_support.pdf
Description

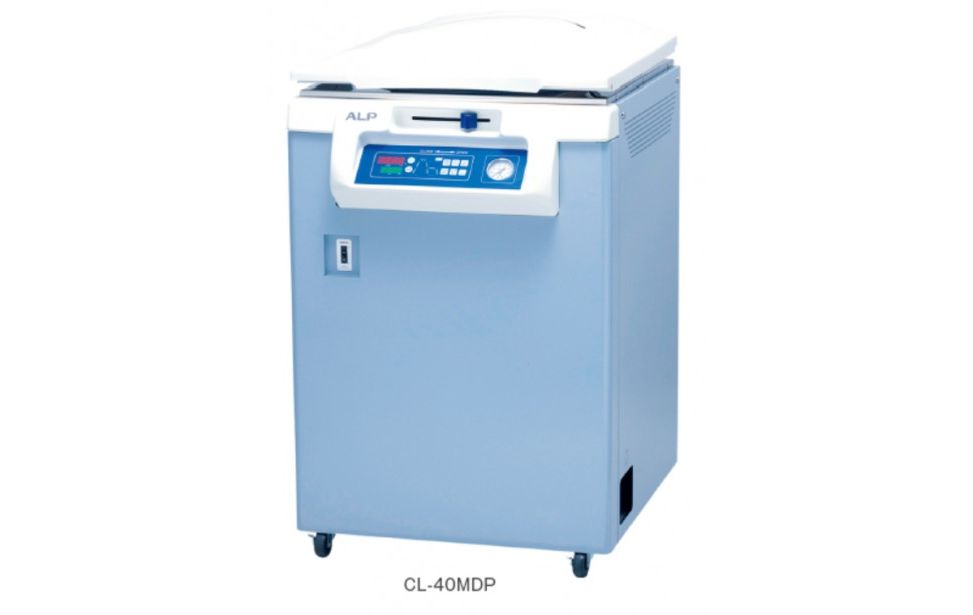

CL series
Smart Lab Clave
A best-selling & price-performance top-loading laboratory autoclave with one-action safety interlock lid. Handy with functionality.
With drying function (CL-DP series), can dry after sterilization by the air through 0.2μm sterilization filter without opening the lid.
Specifications :
|
MODEL |
CL-32S |
CL-32L |
CL-40S |
CL-40M |
CL-40L |
|
Chamber size/volume |
φ320×H450mm/45L |
φ320×H660mm/62L |
φ400×H470mm/72L |
φ400×H660mm/97L |
φ400×H820mm/117L |
|
Outer dimension/weight |
W550×D620×H870mm/65kg |
W550×D620×H990mm/71kg |
W620×D720×H880mm/84kg |
W620×D720×H1000mm/88kg |
W620×D720×H1160mm/95kg |
|
Temperature(Max. press.) |
100°C-140°C(0.270MPa) |
100°C-137°C(0.250MPa) |
|||
|
Sterilization time |
0 minutes- 48 hours 00 minutes |
||||
|
Dissolving temp./time |
40°C-99°C / 0 minutes- 48 hours 00 minutes |
||||
|
Warming temp./time |
40°C-60°C / 0 minutes- 48 hours 00 minutes |
||||
|
Safety device |
Lid interlock, Water lack prevention, Over temperature prevention, Over pressure prevention Sensor breakage detection, Memory backup, Leakage breaker, Pressure safety valve |
||||
|
Power demand |
AC220/230/240V, 11/11/12A |
AC220/230V/240V,18/19/20A |
|||
|
Wire basket/quantity |
φ300×200mm/2 pcs. |
φ300×300mm/2 pcs. |
φ380×200mm/2 pcs. |
φ380×300mm/2 pcs. |
φ380×400mm/2 pcs. |
|
MODEL |
CL-32SDP |
CL-32LDP |
CL-40SDP |
CL-40MDP |
CL-40LDP |
|
Chamber size/volume |
φ320×H450mm/45L |
φ320×H660mm/62L |
φ400×H470mm/72L |
φ400×H660mm/97L |
φ400×H820mm/117L |
|
Temperature(Max. press.) |
100°C-140°C (0.270MPa) |
100°C-137°C (0.250MPa) |
|||
|
Sterilization time |
0 minutes- 48 hours 00 minutes |
||||
|
Drying temp./time |
60°C-150°C / 0 minutes- 99 hours 59 minutes |
||||
|
Dissolving temp./time |
40°C-99°C / 0 minutes- 48 hours 00 minutes |
||||
|
Warming temp./time |
40°C-60°C / 0 minutes- 48 hours 00 minutes |
||||
|
Safety device |
Lid interlock, Water lack prevention, Over temperature prevention, Over pressure prevention, Sensor breakage detection, Memory backup, Leakage breaker, Pressure safety valve |
||||
|
Power demand |
AC220/230/240V, 11/11/12A |
AC220/230V/240, 18/19/20A |
|||
|
Wire basket/quantity |
φ300×200mm/2 pcs. |
φ300×300mm/2 pcs. |
φ380×200mm/2 pcs. |
φ380×300mm/2 pcs. |
φ380×400mm/2 pcs. |
