PRODUCT | MC series
- Product name : MC series
- Category : Autoclave » ALP
- Catalog : MC_series_support.pdf
Description

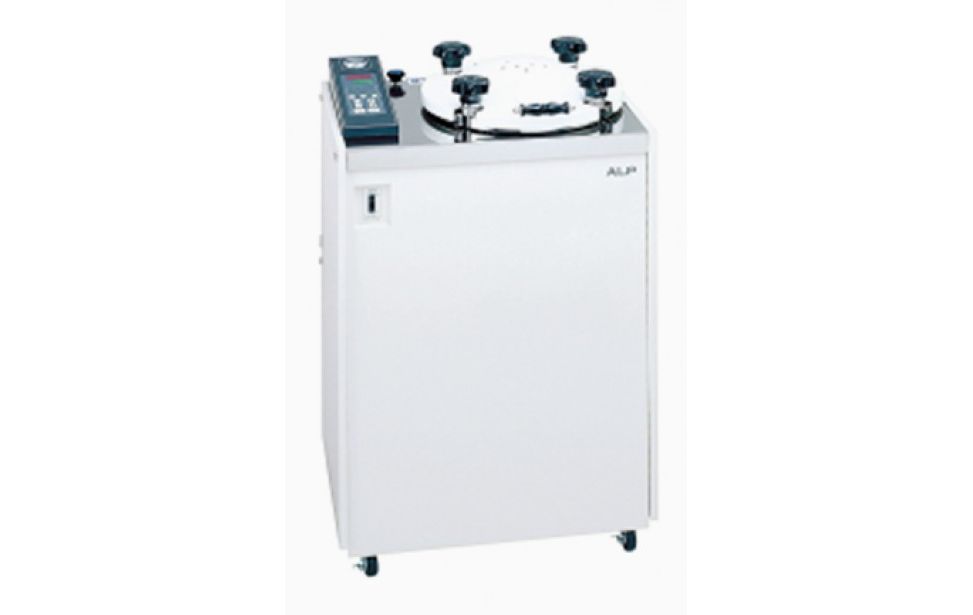

MC series
Robust Lab Clave
Robust, easy to maintain as a simple structure. Available in a top model with the Max. temp. 150°C. Ideal for sterilizing wastes.
Specifications :
MODEL |
MC-23 |
MC-30S |
MC-30L |
MC-40 |
MC-40L |
MC-3032S |
MC-3032L |
Chamber size (Capacity) |
φ230×H460mm/22L |
φ300×H450mm/37L |
φ300×H630mm/50L |
φ400×H650mm/96L |
φ400×H830mm/118L |
φ300×H450mm/37L |
φ300×H630mm/50L |
Outer dimension (WxDxH) |
520×400×890mm |
600×400×910mm |
600×400×990mm |
770×560×980mm |
770×560×1160mm |
620×460×830mm |
620×460×930mm |
Weight |
38kg |
50kg |
55kg |
80kg |
91kg |
59kg |
63kg |
Temperature (Max. press.) |
100°C-127°C (0.160MPa) |
100°C-150°C (0.380MPa) |
|||||
Sterilization time |
0 minutes- 48 hours 00 minutes |
||||||
Dissolving temp./time |
40°C-99°C / 0 minutes- 48 hours 00 minutes |
||||||
Warming temp./time |
40°C-60°C / 0 minutes- 48 hours 00 minutes |
||||||
Safety device |
Water lack prevention, Over temperature prevention, Over pressure prevention, Sensor breakage detection, Memory backup, Leakage breaker, Pressure safety valve |
||||||
Power demand |
AC220/230/240V, 8A |
AC220/230/240V, 11/11/12A |
AC220/230/240V, 18/19/20A |
AC220/230/240V, 17/17/18A |
|||
Wire basket/quantity |
φ210×400mm/1 pc. |
φ270×400mm/1 pc. |
φ270×300mm/2 pcs. |
φ380×300mm/2 pcs. |
φ380×400mm/2 pcs. |
φ270×200mm/2 pcs. |
φ270×300mm/2 pcs. |
