PRODUCT | CLM series
- Product name : CLM series
- Category : Autoclave » ALP
- Catalog : CLM_series_support.pdf
Description

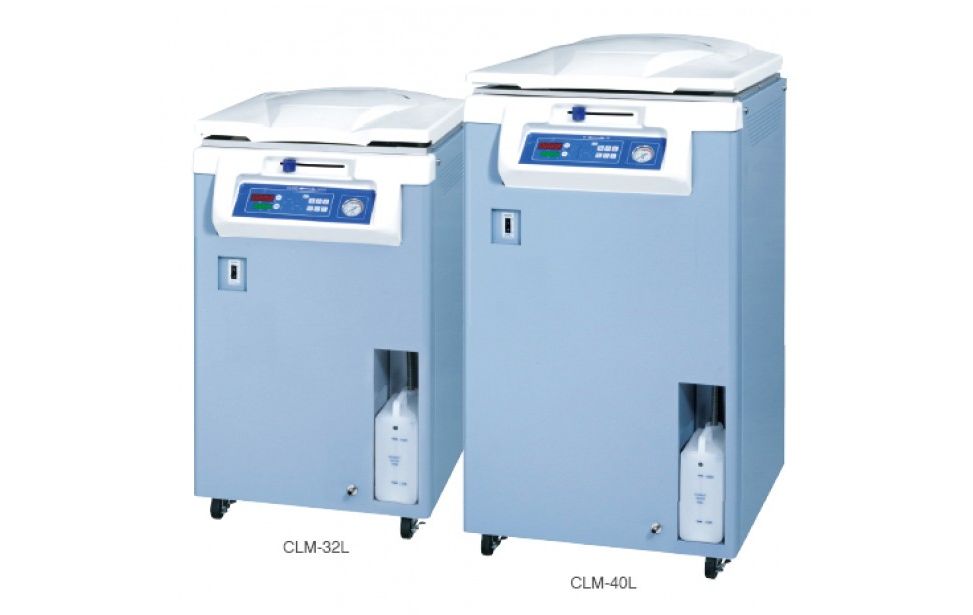

CLM series
Smart Medical Clave
In medical settings, not only flont-loading autoclaves, but also top-loading autoclaves are used like these models.
Both high functionality and space saving are achieved. Optimal for clinics, mobile hospitals, health centers, etc.
Specifications :
|
MODEL |
CLM-32L |
CLM-40M |
CLM-40L |
|
Chamber size/volume |
φ320×H660mm/62L |
φ400×H660mm/97L |
φ400×H820mm/117L |
|
Outer dimension/weight |
W550×D620×H990mm/71kg |
W620×D720×H1000mm/88kg |
W620×D720×H1160mm/95kg |
|
Temperature (Max. press.) |
100°C-138°C (0.260MPa) |
100°C-135°C (0.240MPa) |
|
|
Sterilization time |
0 minutes- 48 hours 00 minutes |
||
|
Dissolving temp./time |
40°C-99°C / 0 minutes- 48 hours 00 minutes |
||
|
Warming temp./time |
40°C-60°C / 0 minutes- 48 hours 00 minutes |
||
|
Safety device |
Lid interlock, Water lack prevention, Over temperature prevention, Over pressure prevention, Sensor breakage detection, Memory backup, Leakage breaker, Pressure safety valve |
||
|
Power demand |
AC220/230/240V, 11/11/12A |
AC220/230V/240V, 18/19/20A |
|
|
Wire basket/quantity |
φ300×300mm/2 pcs. |
φ380×300mm/2 pcs. |
φ380×400mm/2 pcs. |
