PRODUCT | ACJ200-4M
- Product name : ACJ200-4M
- Category : Balance » Kern
- Catalog : ACJ200-4M_support.pdf
Description

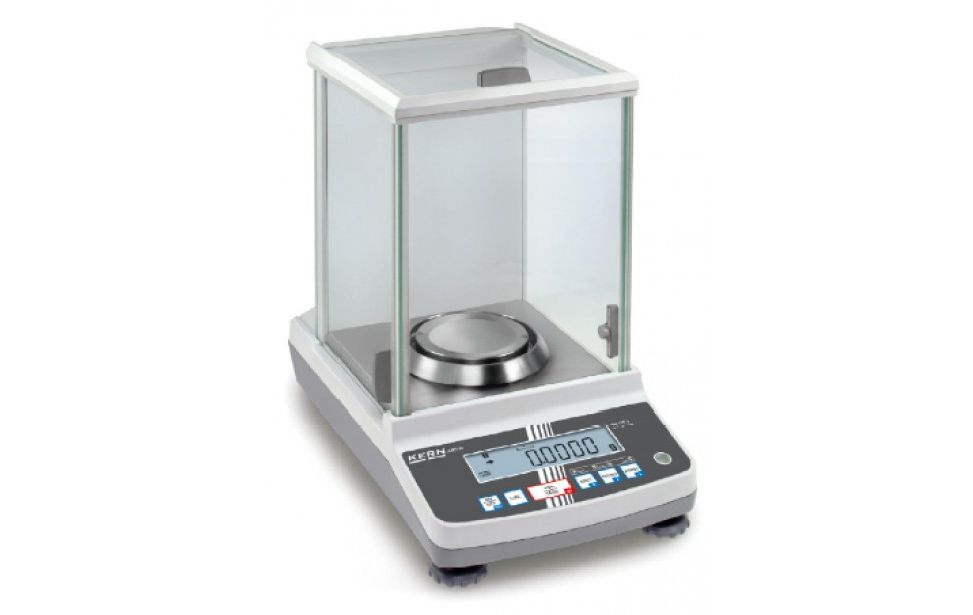

ACJ 200-4M
Analytical balance
Technical Data :
|
Weighing capacity [Max] |
220 g |
|
Readability [d] |
0,0001 g |
|
Verification scale interval [e] |
0,001 g |
|
Units |
g, mg, ct |
|
Conformity assessment possible ex works |
|
|
Minimum weight [Min] |
0,01 g |
|
Linearity |
± 0,0003 g |
|
Reproducibility |
0,0002 g |
|
Stabilization time |
3 s |
|
USP Minimum weight of sample (k = 2, U = 0.1%) |
400 mg |
|
Interfaces |
RS-232 standard, USB-Device |
|
Adjustment options |
Internal calibration (automatic), Adjusting with internal weight (manual) |
|
Recommended adjusting weight |
200 g (E2) |
|
Ambient temperature |
10 °C – 30 °C |
|
Dimensions weighing surface (Ø) |
91 mm |
|
Material draught shield |
glass |
|
Material housing |
cast aluminium, plastic |
|
Dimension housing (W×D×H) |
213×333×338 mm |
|
Material weighing plate |
stainless steel |
|
Net weight approx. |
7 kg |
|
Construction type of the scale |
Single-range balance |
