PRODUCT | HPQA
- Product name : HPQA
- Category : Viscometer / Rheometer BROOKFIELD » 03. ACCESSORIES
- Catalog : HPQA_support.pdf
Description
HPQA

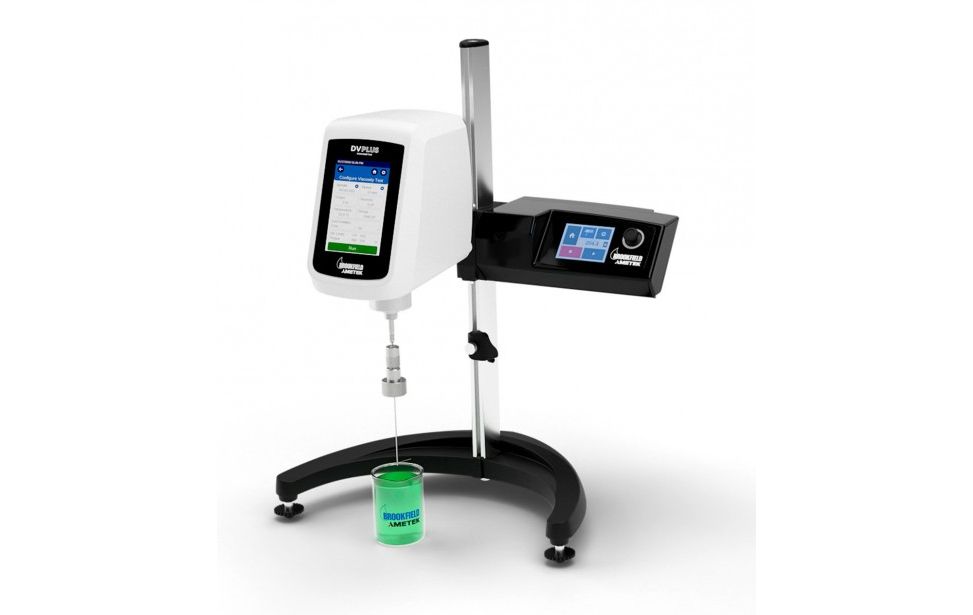

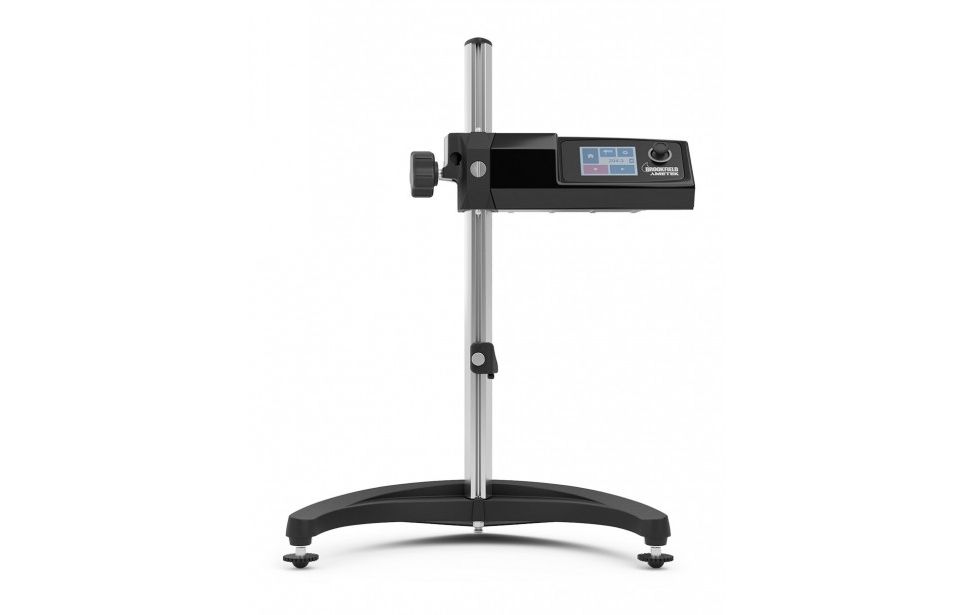

Helipath Quick Action Stand
Advanced Helipath Testing & Quick Action Operations
• Designed for viscosity/consistency measurement of materials that are sometimes dicult to measure such as gels, pastes, creams, putty, gelatin, and other non-flowing substances
• Variable, high-speed travel up to 40 mm/s with joystick: Ideal for Quick Action operations and standard viscosity tests
• Touchscreen interface with physical joystick for easy programming and precise control
• Home and programmable test positions allow quick one-touch stand movements for easy cleaning and preparation for the next test
• Excellent choice for end of line quality tests to be sure product is consistent
• Simple to set up and clean
• Available with Magnetic Spindle Coupling Option, allowing spindles to be quickly attached and removed while preventing damage during frequent spindle changes
• Compatible with all AMETEK Brookfield Viscometers and DVNext Rheometers
|
Helipath Viscosity Ranges cP(mPa•s) |
||
|
Viscosity Range |
DIAL, DVE DV1 |
DVPlus, DV2T, DV3T / DVNext |
|
LV RV HA HB |
156 - 3.12M 2K - 20M 4K - 40M 16K - 160M |
156 - 9.37M 2K - 100M 4K - 200M 16K - 800M |
** Minimum ranges shown is at 0.1 rpm
K = 1 thousand M = 1 million cP = Centipoise mPa•s = MilliPascal•seconds
