PRODUCT | HI8734
- Product name : HI8734
- Category : Water Analysis Equipment » Hanna Instruments
- Catalog : HI8734_support.pdf
Description

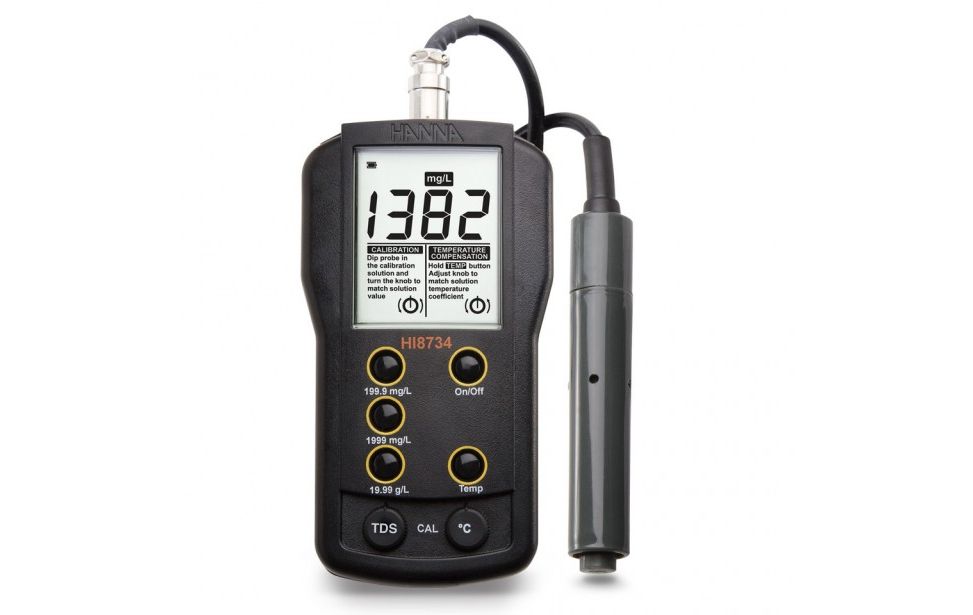

HI8734
Three Range Portable TDS Meter
The HI8734 is a rugged, portable TDS meter designed for use in a wide variety of environmental conditions. It is supplied with a four-ring conductivity probe to allow for three ranges of measurement. TDS readings are adjusted with manual temperature compensation, assuring users of consistent and accurate measurements of total dissolved solids.
- Four-ring probe
- Three measuring modes
- Manual Temperature Compensation
Specification
|
TDS Range |
0.0 to 199.9 mg/L (ppm) 0 to 1999 mg/L (ppm) 0.00 to 19.99 g/L (ppt) |
|
TDS Resolution |
0.1 mg/L (ppm) 1 mg/L (ppm) 0.01 g/L (ppt) |
|
TDS Accuracy @ 25°C / 77°F |
±1% FS (excluding probe error) |
|
TDS Conversion Factor |
0.5 |
|
TDS Calibration |
manual, one-point through TDS knob |
|
Temperature Compensation |
manual from 0 to 50°C (32 to 122°F) with β = 2%/°C |
|
Power Supply |
1 x 9V alkaline batteries |
|
Power Consumption |
approximately 100 hours of continuous use |
|
Environment |
0 to 50°C (32 to 122°F) RH max 95% |
|
Dimensions |
145 x 80 x 36 mm (5.7 x 3.1 x 1.4in.) |
|
Weight |
230 g (8.1 oz) |
|
Ordering Information |
Supplied with HI76301D conductivity probe, HI70032 1382 mg/L (ppm) calibration solution sachet, battery, and instruction manual. |
|
Warranty |
2 years |
|
Recommended Probe |
HI76301D four ring conductivity probe with DIN connector and 1 m (3.3') cable (included) |
