PRODUCT |  HyperVAP HV300

  •  Product name : HyperVAP HV300
  •  Category : Gas Meter / Gas Purging » Hanil
  •  Catalog : HyperVAP_HV300_support.pdf

Description

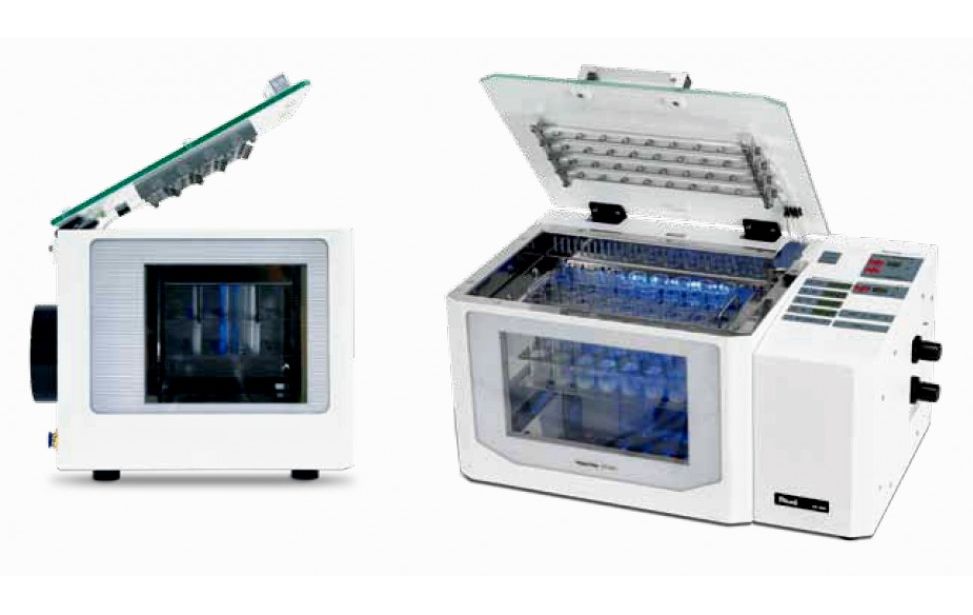

HyperVAP HV300

Gas Purging Evaporation Concentrator

Accelerated evaporation performance by gas purging mechanism

Automated, programmable and reproducible

Proprietary semi-helical gas flow mechanism to achieve the highest evaporation rate

Diverse dimensions of nozzles and tube racks can be tailored upon customer needs.

Four independent timer settings for different solvents

Dual-step control of gas pressure and time to prevent “bumping” of the sample on startup

Differentiated monitoring functions: 3-side transparent glass panels,

blue backlight (on/off switchable) and traffic lights

Optimized for evaporating organic solvents including sample preparations for chromatography

Safety features: tempered glass panels, automatic gas shutoff function, traffic lights (fan, door, heater)



Applications :

- Pharmaceutical biotech compounds

- Clinical samples

- Environmental samples

- Forensic and crime samples

- Agrochemical samples

- Food and beverage analysis



Technical Specifications :

- Sample Capacity : Number of Samples = 6~32, Sample Volume (mL) = 1~300

- Gas : Compressed air, N2, etc.

- Pressure : Operation Gas Pressure (psi) = 15~50, Pressure Control = Automated dual-step control (initial & operating pressure)

- Max. Time for Initial Pressure (min) : ~ 99

- Max. Time Control (min) : ~ 999 (4 independent channels)

- Water Bath Temperature (?) : ~ 99

- Forced Vapor Evacuation Yes : (by fan)

- Power Requirement (VA) : 800

- Dimension (W x D x H, mm) : 590 x 340 x 320

- Weight (kg) : 26.5



With a view models as follows :



HV-300 concentrator consists of a complete system installed with a nozzle assembly and a tube rack, incl. nozzle caps.

- HGP-300-48 HV300 with 4 x 8 nozzles assembly and a choice of a tube rack

- HGP-300-36 HV300 with 3 x 6 nozzles assembly and a choice of a tube rack

- HGP-300-35 HV300 with 3 x 5 nozzles assembly and a choice of a tube rack

- HGP-300-23 HV300 with 2 x 3 nozzles assembly and a choice of a tube rack



Nozzle

- HGP-N48 Nozzle assembly, 4 x 8 (32 positions)

- HGP-N36 Nozzle assembly, 3 x 6 (18 positions)

- HGP-N35 Nozzle assembly, 3 x 5 (15 position)

- HGP-N23 Nozzle assembly, 2 x 3 (6 position)

- HGP-NC Nozzle caps, 8/pk



Tube Rack

- HGP-R48-24 Tube rack for 24 mm x 120 mm (Ø x L) tubes (4 x 8 positions)

- HGP-R48-16 Tube rack for 16 mm x 100 mm (Ø x L) tubes (4 x 8 positions)

- HGP-R48-15 Tube rack for 15 mm x 120 mm (Ø x L) tubes (4 x 8 positions)

- HGP-R36-30 Tube rack for 30 mm x 120 mm (Ø x L) tubes (3 x 6 positions)

- HGP-R35-38 Tube rack for 38 mm x 140 mm (Ø x L) tubes (3 x 5 positions)

- HGP-R23-72 Tube rack for 72 mm x 140 mm (Ø x L) tubes (2 x 3 positions)
