Description

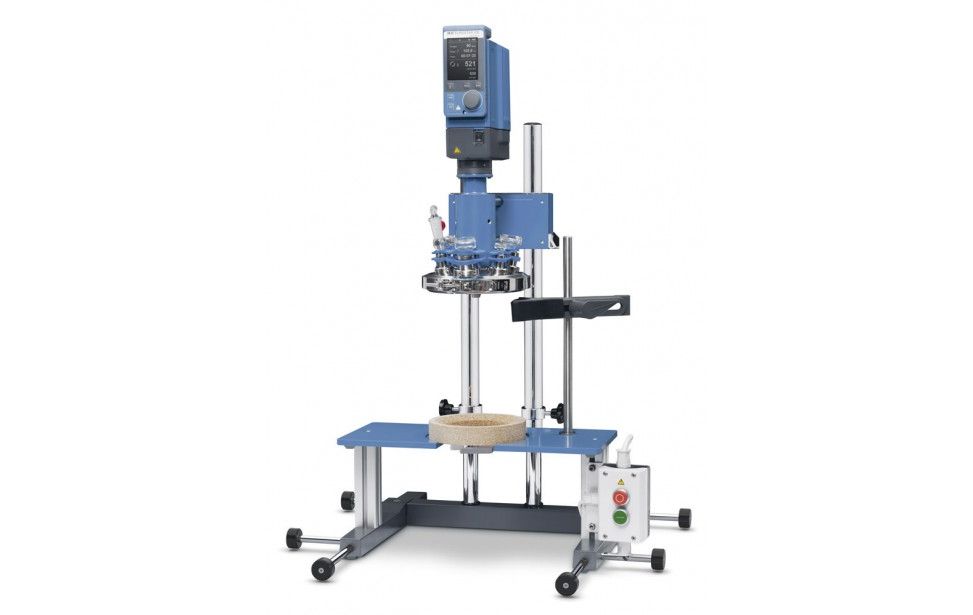

LR-2.ST the Allrounder

Modularly configured laboratory reactor for the optimization and reproduction of various chemical reactions, mixing and homogenization processes on a lab scale.
The system is particularly characterized by the agitator mounting, which allows for a safe transfer of the higher motor torque.
ULTRA-TURRAX® dispersers, temperature sensors, flow breakers and other accessories can be attached to the open ports of the reactor cover.

- Suitable for vacuum operation

- Solvent- and temperature-resistant perfluoroelastomer (FFPM) seals come into contact with sample

- Infinitely variable speed

- Torque trend display for measuring changes in viscosity

- Microprocessor-controlled speed regulation, enables steady speed, also under load

- Removable WiCo (wiresless controller) for remote and safe use in a fume hood

The LR-2.ST laboratory reactor system consists of :

- Stand system

- EUROSTAR 200 control high-torque laboratory stirrer

- Safety switch

- Reactor cover

Technical data :

Usable volume min. : 500ml

Usable volume max. : 2000ml

Working temperature max. : 230°C

Telescope stand stroke : 390mm

Width : 460mm

Weight : 25kg

Height : 1240mm

Depth : 430mm

Working temperature min. : Room temp.°C

Speed min. : 8rpm

Permissible ambient temperature max. : 40°C

Permissible ambient temperature min. : 5°C

Reactor vessel openings (units/standard) : 3/NS 29/32 2/NS 14/23

Permissible relative humidity : 80%

Viscosity max. : 100000mPas

Speed max. : 290rpm

Attainable vacuum : 25mbar

Material in contact with medium : borosilicate glass, FFPM, PTFE, steel 1.4571
